1862946

mpn1862946
brandname: Phoenix Contact
manufacturername: Phoenix Contact

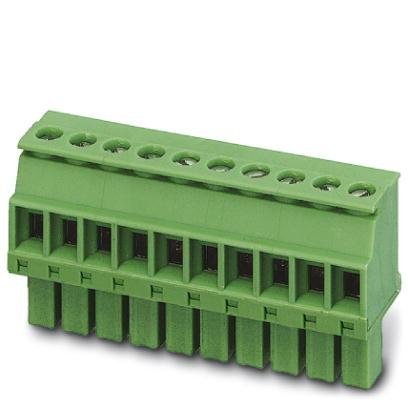

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Plug 28-16 AWG Screw

zoom

PartNumber: 1862946
PackageQuantity: 1
Binding: Misc.
Manufacturer: Phoenix Contact
Label: Phoenix Contact

Attributes

Key	Value
Agency Approvals	UL, cULus, VDE
Alternate Mfr Part Numb.	MCVW 1 5/11-ST-3 5
Approvals	CCA
Category	Connectors, Interconnec.
Color	Green
Contact Material	-
Contact Mating Finish	Tin
Contact Tail Length	-
Cross-Section Area	1.5 mm?? (Nom.)
Current - IEC	8A
Current - UL	8 A
Current Rating	8 A
Description	TERM BLOCK PLUG 11POS 3.
Detailed Description	11 Position Terminal Bl.
Digi-Key Part Number	1862946-ND
Family Name	COMBI Plug Family
Features	-
Header Orientation	-
Housing Material	Polyamide (PA), Nylon
Ingress Protection	-
Insulation Height	0.752" (19.10mm)
Insulation Material	Polyamide
Level	Single Level
Manufacturer	Phoenix Contact
Manufacturer Product Nu.	1862946
Manufacturer Standard L.	26 Weeks
Material Flammability R.	UL94 V-0
Material, Insulation	Polyamide
Mfr	Phoenix Contact
Mounting Type	Free Hanging (In-Line),.
Number of Levels	1, 1 Level
Number of Positions	11, 11 Position
Operating Force	Polyamide
Operating Temperature	-
Package	Bulk
Pin Spacing	3.5 mm(0.138 in)
Pitch	0.138" (3.50mm)
Plug Wire Entry	270?
Positions Per Level	11
Primary Type	Wire to Board
Product Status	Active
Screw Size	M2
Series	COMBICON MCVW
Stripping Length	7 mm
Termination	Socket
Termination Style	Screw - Rising Cage Cla.
Torque - Screw	0.22-0.25 Nm (1.9-2.2 L.
Torque, Tightening	0.22 Nm (Min.)
Type	Plug, Plug, Female Sock.
UPC Code	4017918120757
Voltage - IEC	320 V
Voltage - UL	300 V
Voltage Rating	300 V
Voltage, Surge	2.5 kV
Wire Entry	Front
Wire Gauge or Range - A.	14-30 AWG
Wire Gauge or Range - m.	0.14-1.5mm?
Wire Size	14-30 AWG
Wire Strip Length	7mm
Wire Termination Type	Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricautomationnetwork.com	MCVW 1,5/11-ST-3,5	7.78	1	In Stock		PHOENIX_CONTACT		7.78 @ 1
	Radwell	1862946	10.63	50	In Stock		PHOENIX CONTACT		10.63 @ 50
	industrialautomationparts.com	AE-008575	11.9	1	In Stock		Phoenix Contact		11.9 @ 1
	Digi-Key	476265	12.1436	50	In Stock		Phoenix Contact		12.1436 @ 50
	MRO Stop	753002341	13.41	1	In Stock		Phoenix Contact		13.41 @ 1
	Airline Hydraulics	PHOENIX 1862946	13.93	1	In Stock		Phoenix Contact		13.93 @ 1
