PHOENIX VITAL LIFE 1984617

mpn1984617
brandname: Phoenix Contact
manufacturername: Phoenix Contact

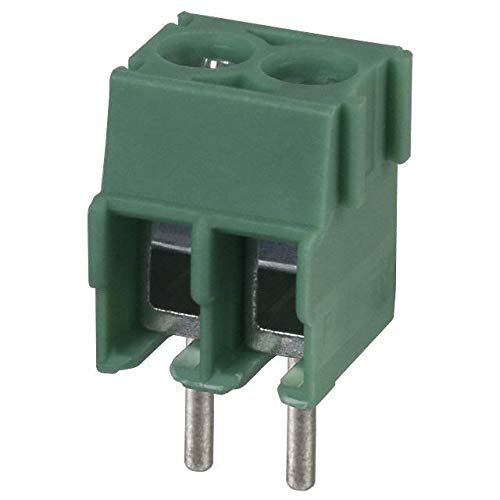

Phoenix Contact 1984617 Connector Terminal Blocks

Phoenix Contact 1984617 Connector Terminal Blocks

zoom

Brand: PHOENIX VITAL LIFE
PartNumber: 1984617
Model: 1984617
PackageQuantity: 1
Manufacturer: Phoenix Contact
Label: Phoenix Contact

Attributes

Key	Value
Agency Approvals	UL, cULus, UL ; cULus
Alternate Mfr Part Numb.	PT 1 5/ 2-3 5-H
Approvals	UL Recognized ; cUL Rec.
Category	Connectors, Interconnec.
Clamp Material - Plating	-
Color	Green
Contact Material - Plat.	-
Current	10 A
Current Rating	17.5 A
Diameter, Hole	1.2 mm
Dimensions	7.6 L x 3.5 +3.5 W x 9 .
Dimensions, Pin	0.9 mm
Family Name	COMBI Plug Family
Features	Interlocking (Side)
Hole Diameter	1.2 mm
Housing Material	Polyamide (PA), Nylon
Insulation Material	PA
Level	Single Level
Material, Insulation	PA
Mating Orientation	Horizontal with Board
Mfr	Phoenix Contact
Mounting Type	Through Hole, PCB Mount
Number of Contacts	2
Number of Levels	1, 1 Level
Number of Positions	2, 2 Position
Operating Force	PA
Operating Temperature	-
Package	Bulk
Pin Dimensions	0.9 mm
Pin Spacing	3.5 mm, 3.5 mm(0.138 in)
Pitch	0.138" (3.50mm), 3.5 mm
Positions Per Level	2
Primary Type	PCB Mount, Wire to Board
Product Status	Active
Screw Material - Plating	-
Screw Thread	M2
Series	COMBICON PT Series, COM.
Special Features	Compact
Stripping Length	5 mm
Surge Voltage	2.5 kV (III/3, III/2, I.
Termination	Screw, Socket
Tightening Torque	0.25 Nm (Min.)
Torque - Screw	0.22-0.25 Nm (1.9-2.2 L.
Torque, Tightening	0.25 Nm (Min.)
Type	Plug, Terminal
UPC Code	4017918946166
Voltage	300 V
Voltage Rating	200 V, 160 V
Voltage, Surge	2.5 kV (III???3, III???.
Wire Entry	Front
Wire Gauge	16-26 AWG
Wire Size	16 AWG, 16-26 AWG
Wire Termination	Screw
Wire Termination Type	Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	i-components	1984617	0.162	1	147791		Phoenix Contact		0.162 @ 1
	Onlinecomponents.com	1984617	0.385	1	463		Phoenix Contact		0.385 @ 1
	industrialautomationparts.com	AE-008339	0.4	1	250		Phoenix Contact		0.4 @ 1
	Hotenda	H1616791	0.41	1	11117		Phoenix Contact		0.41 @ 1
	Carlton Bates Company	78037397012	0.45	1	250		PHOENIX CONTACT		0.45 @ 1
	Radwell	1984617	0.45	250	250		PHOENIX CONTACT		0.45 @ 250
	Arrow	1984617	0.481	1	4		Phoenix Contact		0.481 @ 1
	Airline Hydraulics	PHOENIX 1984617	0.52	1	192		Phoenix Contact		0.52 @ 1
	us.rs-online.com	70055015	0.54	250	192		Phoenix Contact		0.54 @ 250
	MRO Stop	753020418	0.59	1	192		Phoenix Contact		0.59 @ 1
	Newark	32AC8238	0.592	1	732		PHOENIX CONTACT		0.592 @ 1
	Digi-Key	950849	0.72	1	192		Phoenix Contact		0.72 @ 1
	RS Delivers	648-8484	3.192	1	192		Phoenix Contact		3.192 @ 1
