mpn:
brand:
manufacturer:
MPN:
Preferred Price:
3.08
Price:
3.08
Min Simple Price:
0.94
Absolute Min Price:
2.5
Min Price:
2.5
Dimensions:
[1.0, 1.0, 1.0]
qty:
81
simpleSku:
NjE5OQ:::1984646
sku:
NjE5OQ::DA:1984646@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
phoenix contact
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | UL, cULus, UL ; cULus |
| Alternate Mfr Part Number | PT 1 5/ 5-3 5-H |
| Approvals | UL Recognized ; cUL Recognized ; SEV ; CCA ; EAC ; cULus Recognized, UL Recognized, cUL Recognized, SEV, CCA, EAC, cULus Recognized |
| Category | Connectors, Interconnects |
| Clamp Material - Plating, Contact Material - Plating, Operating Temperature, Screw Material - Plating | - |
| Color | Green |
| Current | 10 A |
| Current Rating | 17.5 A |

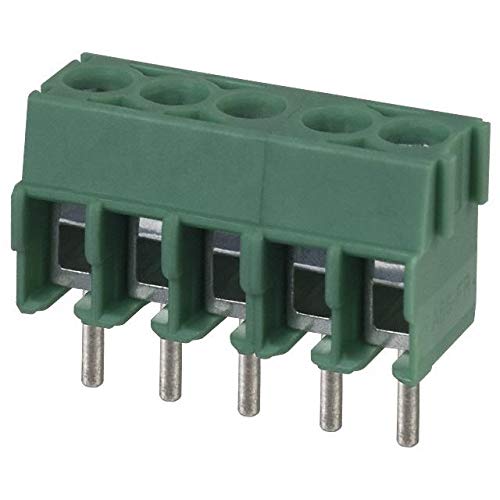

| Description | TERM BLK 5POS SIDE ENT 3.5MM PCB |
| Detailed Description | 5 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Diameter, Hole, Hole Diameter | 1.2 mm |
| Digi-Key Part Number | 277-1723-ND |
| Dimensions | 7.6 L x 14 +3.5 W x 9 D mm, 7.6mm L x 14mm + 3.5mm W x 9mm H |
| Dimensions, Pin, Pin Dimensions | 0.9 mm |
| Family Name | COMBI Plug Family |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Material, Material, Insulation, Operating Force | PA |
| Level | Single Level |
| Manufacturer Product Number | 1984646 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer, Mfr | Phoenix Contact |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole, PCB Mount |
| Number of Contacts, Number of Positions, Positions Per Level | 5 |
| Number of Levels | 1, 1 Level |
| Number of Positions | 5 Position |
| Package | Bulk |
| Pin Spacing | 3.5 mm (0.138 in), 3.5 mm(0.138 in) |
| Pitch | 0.138" (3.50mm), 3.5 mm |
| Primary Type | Wire to Board |
| Product Status | Active |
| Screw Thread | M2 |
| Series | COMBICON PT Series, COMBICON PT |
| Special Features | Compact |
| Stripping Length | 5 mm |
| Surge Voltage | 2.5 kV (III/3, III/2, II/2) |
| Termination | Socket |
| Termination, Wire Termination, Wire Termination Type | Screw |
| Tightening Torque, Torque, Tightening | 0.25 Nm (Min.) |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Type | Plug, Terminal |
| UPC Code | 4017918946197 |
| Voltage | 300 V |
| Voltage Rating | 200 V, 160 V |
| Voltage, Surge | 2.5 kV (III???3, III???2, II???2) |
| Wire Entry | Front |
| Wire Gauge, Wire Size | 16-26 AWG |
| Wire Size | 16 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1984646 | 0.94 | 0.94 | 1 | 175 | Phoenix Contact | 0.94 @ Qty: 1+ | |||
| Hotenda | H1617587 | 0.95 | 0.95 | 1 | 1956 | Phoenix Contact | 0.95 @ Qty: 1+ | |||
| industrialautomationparts.com | AE-008336 | 0.95 | 0.95 | 1 | 105 | Phoenix Contact | 0.95 @ Qty: 1+ | |||
| Radwell | 1984646 | 1.16 | 47.096 | 100 | 105 | PHOENIX CONTACT | 1.16 @ Qty: 100+ | |||
| Airline Hydraulics | PHOENIX 1984646 | 1.23 | 1.23 | 1 | 81 | Phoenix Contact | 1.23 @ Qty: 1+ | |||
| electricautomationnetwork.com | PT 1,5/ 5-3,5-H | 1.24 | 1.24 | 1 | 80 | PHOENIX_CONTACT | 1.24 @ Qty: 1+ | |||
| us.rs-online.com | 70055018 | 1.32 | 53.592 | 100 | 81 | Phoenix Contact | 1.32 @ Qty: 100+ | |||
| MRO Stop | 753020421 | 1.4 | 1.4 | 1 | 71 | Phoenix Contact | 1.4 @ Qty: 1+ | |||
 | Digi-Key | 950851 | 1.704 | 1.704 | 1 | 3683 | Phoenix Contact | 1.704 @ Qty: 1+ |
