| Accuracy | +/-3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid-Scale |
| Ambient Operating Temperature Range | -40 Degrees to 140 Degrees F |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.14 in |
| Case Diameter | 2.09 in |
| Case Material - Gauge | Steel |
| Cleaned for Oxygen Service | No |
| Connection Location | Lower |
| Connection Size | 1/4 in BSPT |
| Country of Origin (subject to change) | China |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Accuracy Grade | Grade B - Commercial |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4 in |
| Gauge Connection Type | BSPT |
| Gauge Lens Material | Plastic |
| Gauge Nominal Dial Size | 2 in |
| Gauge Primary Range Numbered Graduations | 40 |
| Gauge Primary Range Smallest Graduation | 40 |
| Gauge Primary Range Units | psi |
| Gauge Primary Range Values | 0 to 200 |
| Gauge Secondary Range Units | Bar |
| Gauge Secondary Range Values | 0 to 14 |
| Gauge Sensor Material | Brass |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Graduations | 40 psi |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| IP/NEMA Rating | Not Rated |

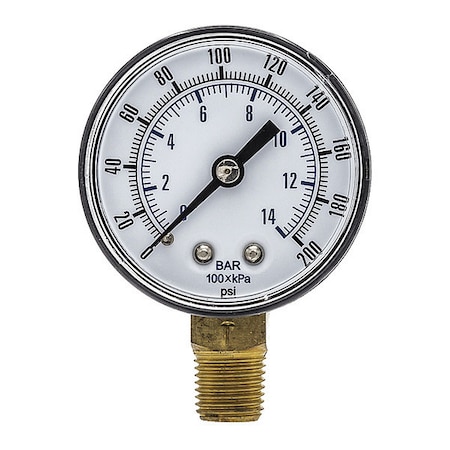

| Item | Industrial Pressure Gauge |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-Filled Case | No |
| Manufacturer Warranty Length | 1 yr |
| Manufacturers Warranty Length | 1 yr |
| Nominal Dial Size | 2 in |
| Non-Sparking | No |
| Operating Temp. Range | -50 Degrees to 160 Degrees F |
| Panel-Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Graduations | 40 / 40 |
| Primary Pressure Range | 0 to 200 |
| Primary Scale Minor Graduations | 40 |
| Primary Scale Numeric Increments | 40 |
| Primary Scale Units | psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Range | 0 to 200 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 14 |
| Secondary Range | 0 to 14 bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Series | 100 |
| Socket Material | Copper Alloy |
| Vibration Resistance | None |
