| Agency Compliance | AMCA and CSA certified, UL Listed |
| Airflow @ 0.250 in SP, Airflow @ 0.500 in SP | 300 cfm |
| Airflow @ 0.500 in SP Range | 0 to 999 cfm |
| Airflow @ Static Pressures | 300 cfm @ 0.250 in SP |
| Assembly | Fully Assembled |
| Bearing Type | Ball, Ball Bearing, Sealed, Permanently Lubricated |
| Blower RPM, Maximum Fan Speed, Minimum Fan Speed, Motor RPM, Motor Speed | 1,140 RPM |
| CFM @ 0.200-In. SP, CFM @ 0.250-In. SP, CFM @ 0.500-In. SP | 300 |
| Corrosion Resistant, Includes Drive Package, Includes Motor, Includes Mounting Hardware, Thermal Overload Protection | Yes |
| Country of Origin (subject to change) | United States |
| Current | 4.06/2.08 A |
| dBA @ 5 Feet | 46 dBA |
| Depth (In.) | 18.22 in |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Flange Size, Outlet Height, Outlet Width | Not Applicable |
| Flange Type | Non-Flanged |
| Flange Type_broad | Outlet |
| For Air Type | Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature |
| For Fan Speed (Dependent on Motor) | 1,140 RPM to 1,140 RPM |
| Frequency, Hz | 60 Hz |
| Full Load Amps | 4.06/2.08 |
| Height (In.) | 24.81 in |
| Housing Finish, Housing Material, Wheel Material | Polypropylene |
| Housing Height, Overall Height | 24 3/4 in |
| Housing Width, Overall Width | 15 1/4 in |
| Includes | Motor Mounting Base |
| Inlet Dia. (In.) | 6.3 in |
| Inlet Diameter | 6 1/4 in |
| Inlet Type | Single-Inlet |

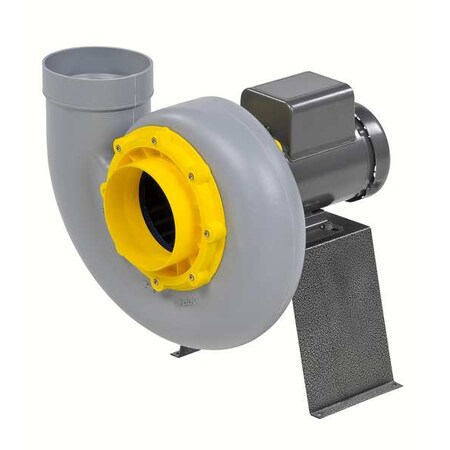

| Item, Product Type | Plastec Blower |
| Material | Plastic Wheel & Plastic Housing |
| Max. Ambient Temp. (F), Maximum Ambient Temperature | -13 Degrees F |
| Max. Inlet Temp. (Deg. F), Maximum Inlet Air Temperature | 140 Degrees F |
| Maximum Static Pressure | 1/2 in wc |
| Minimum Ambient Temperature | -40 Degrees C |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled (TEFC) |
| Motor Enclosure Design_Table | Totally Enclosed Motor |
| Motor Frame, Motor Frame Designation | 71 |
| Motor Horsepower, Motor HP | 1/4 hp |
| Motor Type | General Duty, Single Phase |
| Mount Type | Motor Mount |
| Mounting Orientation | Multiposition |
| Nameplate Voltage, Nominal Voltage | 115/230V AC |
| Number of Discharge Positions | 2 |
| Number of Inlets, Phase | 1 |
| Outlet Dia. (In.) | 6.62 in |
| Outlet Diameter | 6 1/2 in |
| Outlet Shape, Outlet Shape_broad | Round |
| Outlet Size | 6 1/2 in diameter |
| Overall Depth | 18 1/8 in |
| Rotation | CCW |
| Shaft Dia. (In.), Shaft Diameter | 14 mm |
| Sound Level | 46 dBA @ 5 ft |
| Standards | AMCA Certified, CSA Certified, UL Listed |
| Type | Direct Drive Forward Curve |
| Voltage | 115/230 |
| Wheel Dia. (In.) | 7.875 in |
| Wheel Diameter | 7 7/8 in |
| Wheel Dimensions | 7 7/8 in Dia. x 4 1/8 in W |
| Wheel Type | Forward Curve |
| Wheel Width | 4 1/8 in |
| Wheel Width (In.) | 4.13 in |
| Width (In.) | 15.25 in |
