Prince Manufacturing B450360ACDDA07B

B005CWJRLE

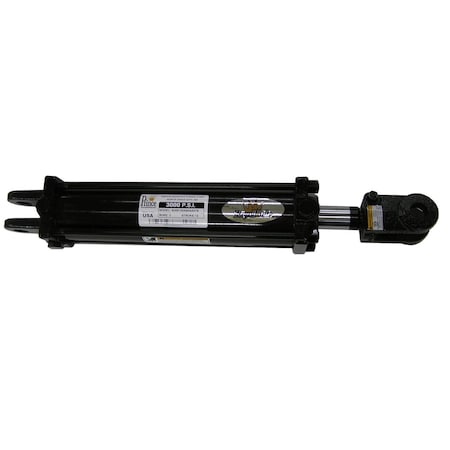

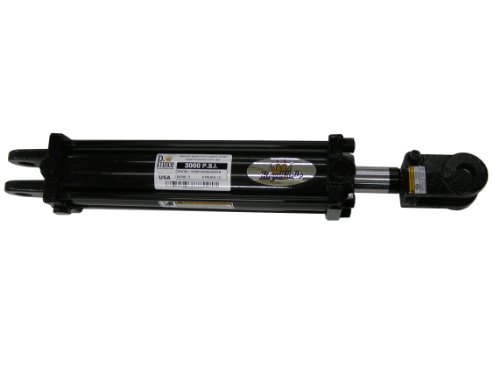

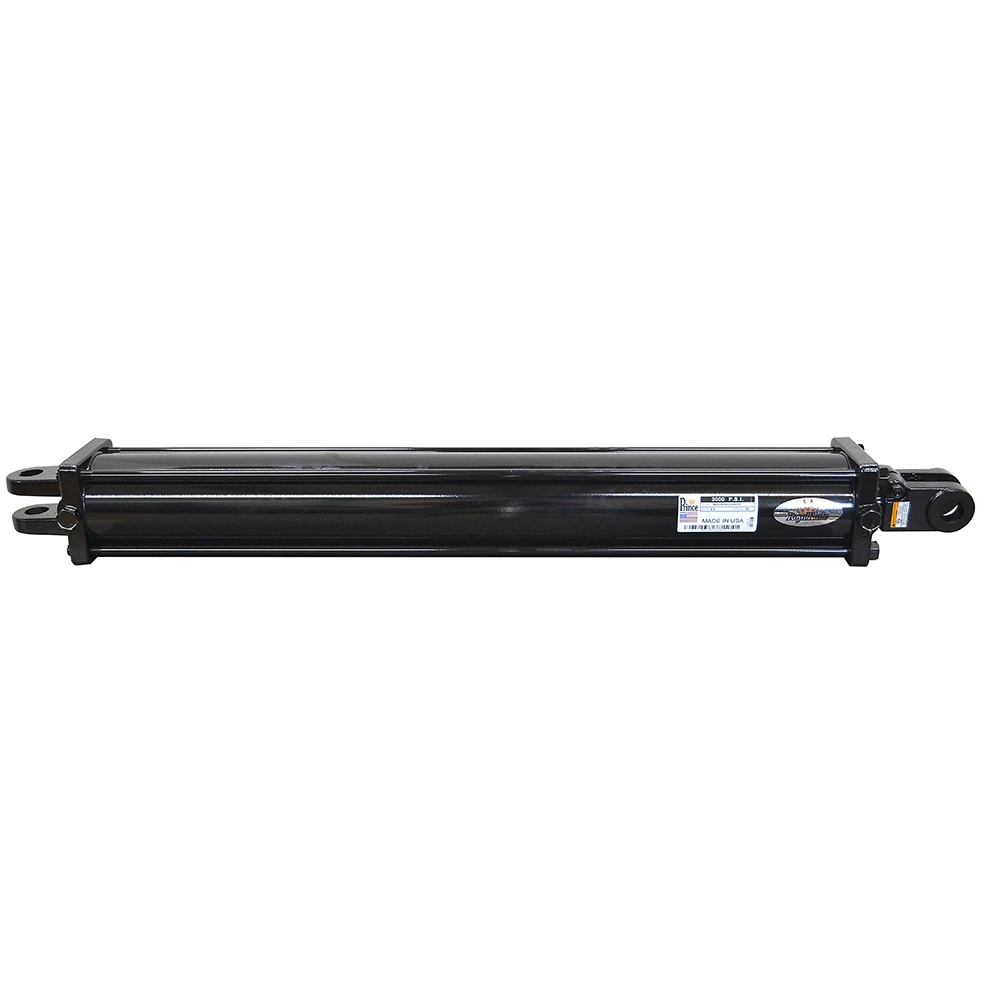

Prince B450360ACDDA07B Double-Acting Tie-Rod Hydraulic Cylinder, Clevis Mounting, Painted, 4-1/2" Bore, 36" Stroke, 2" Rod Diameter, 7/8"-14 Thread, #10 SAE Port

Prince B450360ACDDA07B Double-Acting Tie-Rod Hydraulic Cylinder, Clevis Mounting, Painted, 4-1/2" Bore, 36" Stroke, 2" Rod Diameter, 7/8"-14 Thread, #10 SAE Portzoom

Attributes

Key Value
Barrel Thickness0.25"
Base EndClevis
Bore Dia.4 1/2 in
Bore x Stroke4.5" x 36"
Column Load27430 lb
Country of Origin (subj.United States
Extended Length84 1/4 in
Gland Face to Rod Pin C.4"
Gland RetainerTie-Rod
ItemHydraulic Cylinder
Max. Pressure3,000 psi
Pin Hole1-1/4"
Port Size7/8"-14 SAE
PortsSAE 10
Pressure3000 PSI
Retracted Length48 1/4 in, 48.25"
Rod Dia.2 in, 2"
Rod EndClevis
Rod Thread Size1-1/2"-12
Single Acting/Double Ac.Double Acting
Stroke Length36 in
Weight137 lbs.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsurpluscenter.com9-16045349.951In StockPrince137.0349.95 @ 1
thumbzoomZoroG24019211132.621In Stock7Prince Manufacturing1132.62 @ 1
motionindustries.com029762141165.041In StockPrince Hydraulics1165.04 @ 1
thumbzoomsustainablesupply.comC29928181336.711In StockPrince124.01336.71 @ 1
