Description:

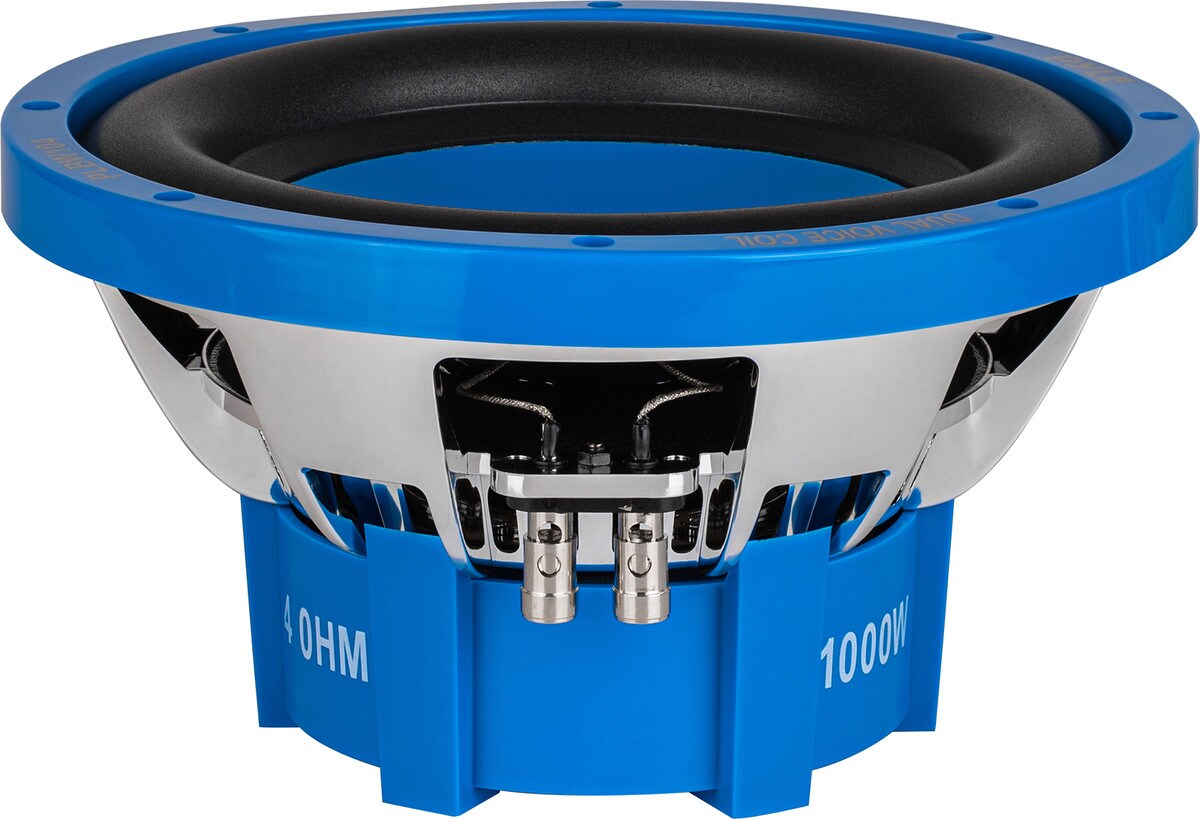

Pyle PLBW104 Blue Wave 10" Woofer. Part Number: 267-085 by Pyle Audio.
Attributes
| Key ^ | Value |
|---|---|
| # Mounting Holes | 8 |
| Basket / Frame Material | Polymer |
| Brand | Pyle Audio |
| Compliance Equivalent Volume (Vas) | 4.91ft? |
| Cone Material | Poly |
| Electromagnetic Q (Qes) | 0.84 |
| Impedance | 8? |
| Magnet Material | Ferrite |
| Mechanical Q (Qms) | 4.92 |
| Model | PLBW104 |
| Nominal Diameter | 10" |
| Overall Outside Diameter | 10.6" |
| Part Number | 267-085 |
| Power Handling (MAX) | 1000 Watts |
| Power Handling (RMS) | 200 Watts |
| Resonant Frequency (Fs) | 50Hz |
| Sealed F3 | 86.4Hz |
| Sealed Volume | 1ft? |
| Sensitivity | 85dB 2.83V/1m |
| Surround Material | Rubber |
| Total Q (Qts) | 0.72 |
| Unit of Measure | Each |
| UPC | 068888876094 |
| Voice Coil Diameter | 2" |
| Voice Coil Former | Kapton? / Polyimide |
| Weight | 11.62 |
