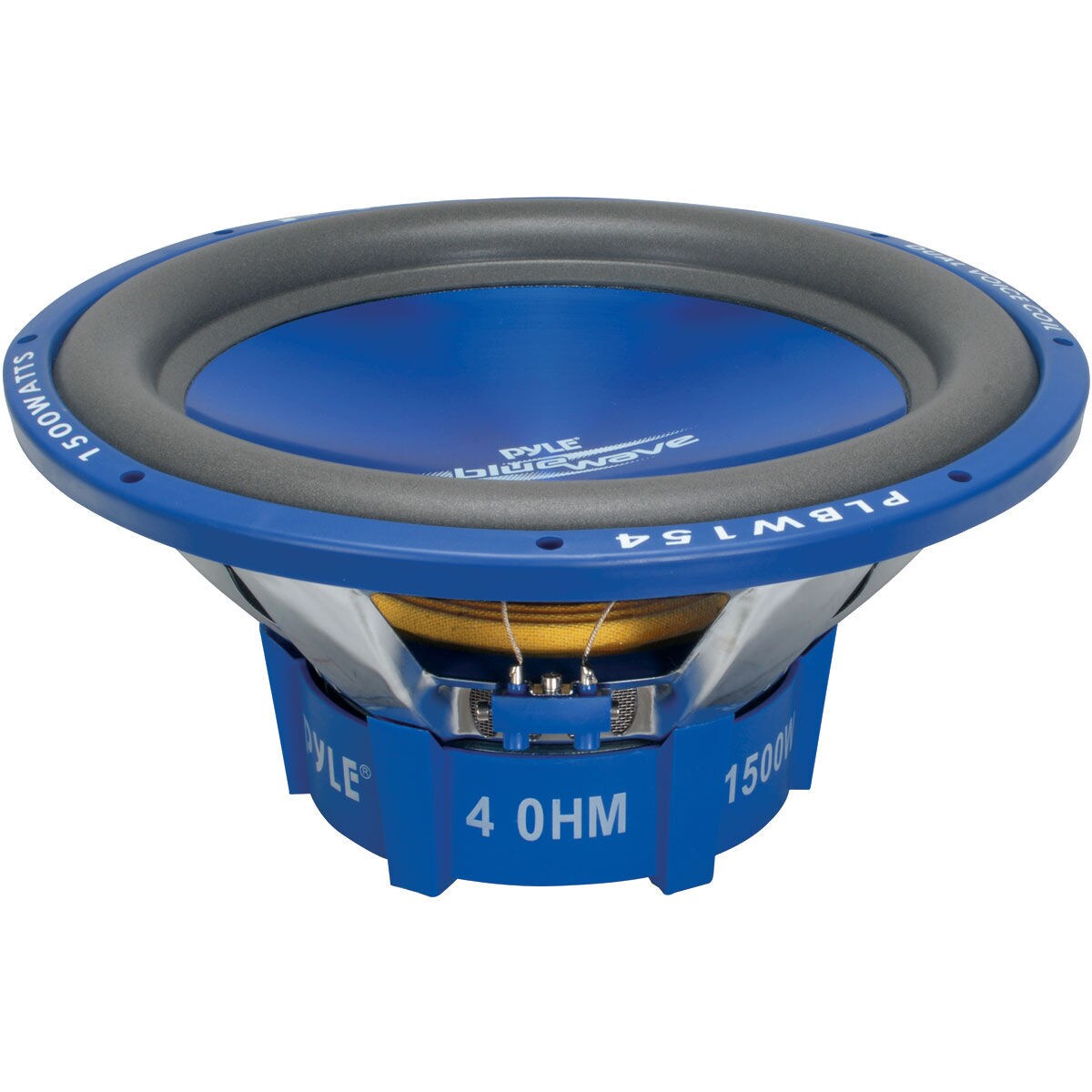

Pyle PLBW154 Blue Wave 15" Woofer. Part Number: 267-087 by Pyle Audio.
Attributes
| Key ^ | Value |
|---|---|
| # Mounting Holes | 8 |
| Basket / Frame Material | Steel |
| Brand | Pyle Audio |
| Compliance Equivalent Volume (Vas) | 5.1ft? |
| Cone Material | Poly |
| Electromagnetic Q (Qes) | 0.91 |
| Impedance | 8? |
| Magnet Material | Ferrite |
| Mechanical Q (Qms) | 5 |
| Model | PLBW154 |
| Nominal Diameter | 15" |
| Overall Outside Diameter | 15.8" |
| Part Number | 267-087 |
| Power Handling (MAX) | 1500 Watts |
| Power Handling (RMS) | 300 Watts |
| Resonant Frequency (Fs) | 30Hz |
| Sealed F3 | 33Hz |
| Sealed Volume | 10.91ft? |
| Sensitivity | 86dB 2.83V/1m |
| Surround Material | Rubber |
| Total Q (Qts) | 0.7 |
| Unit of Measure | Each |
| UPC | 068888876117 |
| Vented F3 | 18Hz |
| Vented Volume | 19ft? |
| Voice Coil Diameter | 2.5" |
| Voice Coil Former | Kapton? / Polyimide |
| Weight | 21.28 |
