Raychem CPGI-RNF-100-1/2-YO-25

mpnCPGI-RNF-100-1/2-YO-25
brandname: RAYCHEM
manufacturername: RAYCHEM

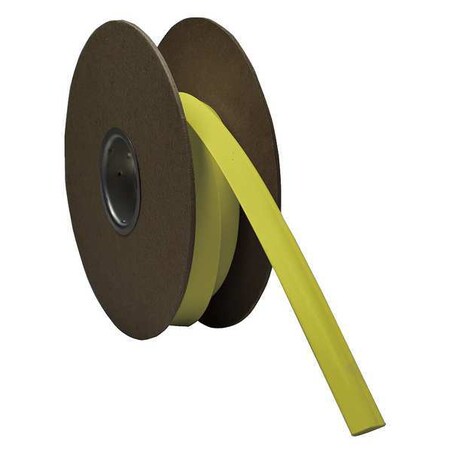

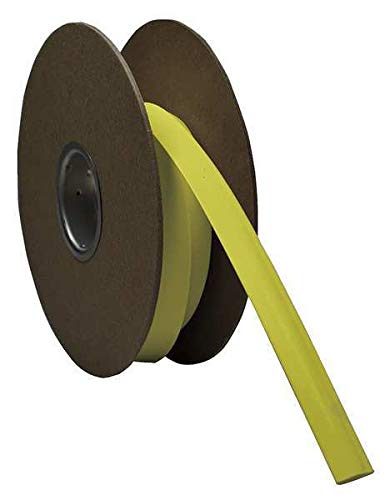

Shrink Tubing, 0.5in ID, Yellow, 25ft

Shrink Tubing, 0.5in ID, Yellow, 25ft

zoom

Brand: Raychem
PartNumber: CPGI-RNF-100-1/2-YO-25
Color: Yellow
PackageQuantity: 1
Manufacturer: RAYCHEM
Label: RAYCHEM

Attributes

Key	Value
Adhesive Lined	No
Color	Yellow
Country of Origin (subj.	United States
Dielectric Strength	600 V
Features	Flame Retardant, Flexib.
Flame Retardant	Yes
I.D. After Shrinking	0.25 in
I.D. Before Shrinking	0.5 in
Item	Heat Shrink Tubing
Length	25 ft
Material	Flexible Polyolefin
Max. Temp. Rating	275 Degrees F
Max. Voltage	600 V
Min. Shrink Temp.	203 Degrees F
Min. Temp. Rating	-67 Degrees F
Package Style	Cut to Length
Shrink Ratio	2:1
Shrink Tube Material Ty.	Flexible
Shrink Tubing Adhesive .	No
Shrink Tubing I.D. Befo.	0.5 in
Shrink Tubing Length	25 ft
Shrink Tubing Material	Polyolefin
Shrink Tubing Properties	Abrasion Resistant, Sol.
Shrink Tubing Type	Heat Shrink Tubing
Shrink Tubing Usable Te.	-67 Degrees to 275 Deg.
Shrink Tubing Wall Thic.	0.025 in
Shrink Tubing Wall Type	Thin Wall
Standards	RoHS 2011/65/EU
Temp. Range	-67 Degrees to 275 Deg.
Tubing Wall Type	Thin Wall
Use Shrink Tubing With .	6 to 1 AWG
Use With Wire Size	6 AWG to 1 AWG
Wall Thickness After Sh.	0.025 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G5325984	12.69	1	25		Raychem		12.69 @ 25
	AmazonSC	B06XD3D36B	22.33	1	25		Raychem		22.33 @ 25
