mpn:
brand:
manufacturer:
MPN:
Description:

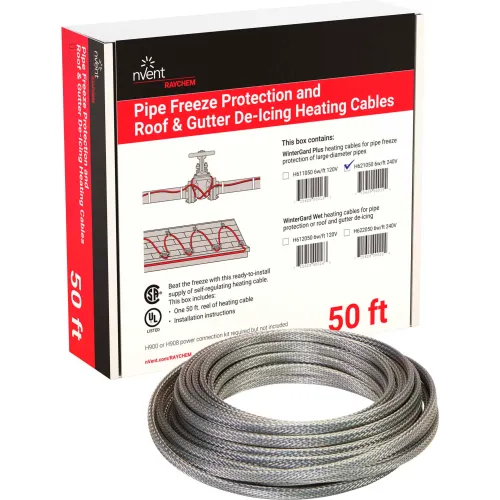

<b>50 Ft. box 6-Watt WinterGard Plus Heating Cable 240V.</b><br> 50 feet of 6-Watt per foot @ 40?F 240V WinterGard Plus Heating Cable for pipe freeze protection applications on metal or plastic pipes up to 6 inches in diameter, in dry locations only.<br><br>This product <b>MUST</b> be used with an H900 (Global #B49344) Hardwire Power Connection (includes end seal) for hardwiring directly into a unction box (not included). <br><br>Note: The National Electrical Code requires the use of ground-fault protection of equipment to reduce the risk of fire caused by damage or improper installation. All installations must also comply with applicable local codes and standards.<br><br>
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
436.92
Price:
436.92
Min Simple Price:
246.85
Absolute Min Price:
350.52
Min Price:
350.52
Dimensions:
[4200.0, 8.0, 8.0]
qty:
21
simpleSku:
DA1MjQ:::H621050
sku:
DA1MjQ::6N:H621050@y0
condition:
11
seller:
morelectricheating.com
amzMan:
raychem
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage | 1.3 Amp |
| Amps per Cable @ 40F, Amps per Foot @ 40F | 0.03 A |
| Cable Construction | Self Regulating |
| Cable Cover Material | Tinned-Coated Copper |
| Cable Length, Length | 50 ft |
| Cable Material | Conductive Carbon |
| Cable Type | Self-Regulating |
| Color | Gray |
| Colour | Silver |
| CPS COMM CODE | RAYCHEM-WINTERGARD-PLUS-6WATT |
| CPS Image URL, CPS Thumbnail URL, PKG VOLUME | https://WWW.clevelandplumbing.com/custom/content/storeimages/classimages/h611100-heatingcabler-15886-24636.jpg |
| ENHANCED SEO | SEO |
| For Use Indoors/Outdoors | Indoor Only |
| For Use With | H900, H903, H910, H912 |
| Frequency | 50 Hz |
| Heat Trace Termination Type | Terminate In The Field Heat Trace |
| Heat Trace Type | Pipe Heat Trace |
| Heating Cable Bus Wire Gauge | 16 AWG |
| Includes | Cable Only |
| Item | Electric Heating Cable |
| Length | 50 Feet |
| Manufacturer | Raychem (nVent) |
| Manufacturer Part Number, VEN Product No | H621050 |
| Master UPC (14) | 71562900019 |
| Material | Plastic |
| Max. Circuit Length | 350 ft |
| Max. Operating Temp. | 150 Degrees F |
| Min. Operating Temp. | -40 Degrees F |
| NEMA Plug Configuration | Hardwired |
| Nominal Voltage - HVAC, Voltage | 240V AC |
| Number of Conductors | 2 |
| Overall Width | 3/8 in |
| Phase | 1 |
| Product Condition | New |
| Standards | CCSA US |
| UPC/GTIN Code, Vendor UPC (12) | 715629000194 |
| Ven Unit Weight | 3 |
| Vendor Description | RAYCHEM H621050 WINTERGARD-PLUS 50' 240V 6W SELF REGULATING DRY HEAT CABLE |
| Vendor Short Name | 715629 |
| Voltage | 240 Volt |
| Volts | 240V |
| Watt/Foot | 6 Watt/Ft |
| Wattage | 300 Watt |
| Wattage Output, Watts per Cable @ 40F, Watts per Foot @ 40F | 6 W |
| Watts | 6 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | morelectricheating.com | RAYCHEM10017 | 246.85 | 246.85 | 1 | In Stock | Raychem (nVent) | 246.85 @ Qty: 1+ | ||
 | clevelandplumbing.com | 209744 | 272.27 | 272.27 | 1 | In Stock | Raychem | 272.27 @ Qty: 1+ | ||
 | Voomi Supply | H621050 | 274.41 | 274.41 | 1 | In Stock | Raychem | 274.41 @ Qty: 1+ | ||
| ferguson.com | 1730797 | 288.8 | 288.8 | 1 | In Stock | Raychem | 288.8 @ Qty: 1+ | |||
| grainger.ca | WWG2VEV7 | 308.65625956 | 308.65625956 | 1 | In Stock | RAYCHEM | 3.39 | 308.65625956 @ Qty: 1+ | ||
 | Global Industrial | WBB49335 | 340.95 | 340.95 | 1 | In Stock | Raychem | 340.95 @ Qty: 1+ | ||
 | Raptor Supplies | AC3PXG | 473.08599 | 473.08599 | 1 | In Stock | RAYCHEM | 473.08599 @ Qty: 1+ |
