Description:

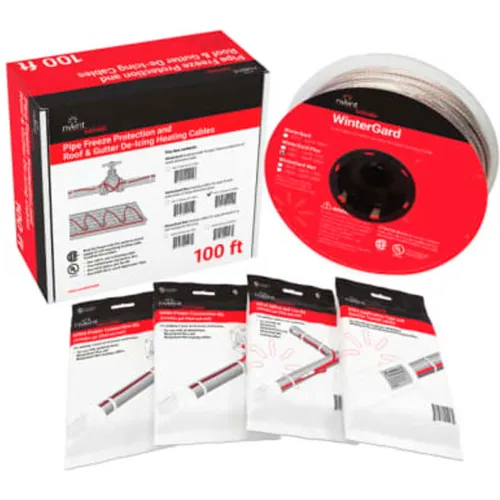

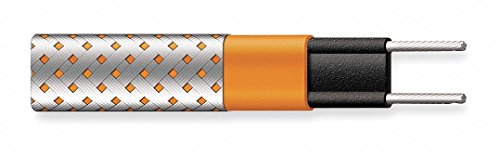

<b>100 ft. TruckPak 6-Watt WinterGard Plus Heating Cable 240V.</b><br> 100 ft. 6-Watt per foot @ 40?F 240V WinterGard Plus Heating Cable for pipe freeze protection applications on metal or plastic pipes up to 6 inches in diameter in dry locations only. TruckPak includes 100 feet of heating cable, two H900 Hardwire Power Connection Kits, one H910 Splice or Tee Kit, and one H903 66 ft. Roll of Application tape. <br><br>NOTE: The National Electrical Code requires the use of ground-fault protection of equipment to reduce the risk of fire caused by damage or improper installation. All installations must also comply with applicable local codes and standards.<br><br>
Weight:
0.5625
Weight:
0.5625 LB
Preferred Price:
105635.36
Price:
105635.36
Min Simple Price:
596.81
Absolute Min Price:
84747.01
Min Price:
84747.01
Dimensions:
[4200.0, 1.0, 1.0]
qty:
1
simpleSku:
OTQ3MQ:::H621100
sku:
OTQ3MQ::DC:H621100@y2
condition:
11
seller:
morelectricheating.com
amzMan:
raychem
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amperage | 2.5 Amp |
| Amps per Cable @ 40F | 0.03 A |
| Amps per Foot @ 40F | 0.03 A |
| Cable Construction | Self Regulating |
| Cable Cover Material | Tinned-Coated Copper |
| Cable Length | 100 ft |
| Cable Material | Conductive Carbon |
| Cable Type | Self-Regulating |
| Color | Gray |
| Colour | Silver |
| For Use Indoors/Outdoors | Indoor Only |
| For Use With | H900, H903, H910, H912 |
| Frequency | 50 Hz |
| Heat Trace Termination Type | Terminate In The Field Heat Trace |
| Heat Trace Type | Pipe Heat Trace |
| Heating Cable Bus Wire Gauge | 16 AWG |
| Includes | Power Connection Kit, Roll of Application Tape, Splice and Tee Kit |
| Item | Electric Heating Cable Kit |
| Length | 100 Feet |
| Manufacturer | Raychem (nVent) |
| Manufacturer Part Number | H621100 |
| Max. Circuit Length | 350 ft |
| Max. Operating Temp. | 150 Degrees F |
| Min. Operating Temp. | -40 Degrees F |
| NEMA Plug Configuration | Hardwired |
| Nominal Voltage - HVAC | 240V AC |
| Number of Conductors | 2 |
| Overall Width | 3/8 in |
| Phase | 1 |
| Product Condition | New |
| Standards | CCSA US |
| UPC/GTIN Code | 715629000200 |
| Voltage | 240V AC, 240 Volt |
| Watt/Foot | 6 Watt/Ft |
| Wattage | 600 Watt |
| Wattage Output | 6 W |
| Watts per Cable @ 40F | 6 W |
| Watts per Foot @ 40F | 6 W |
