Description:

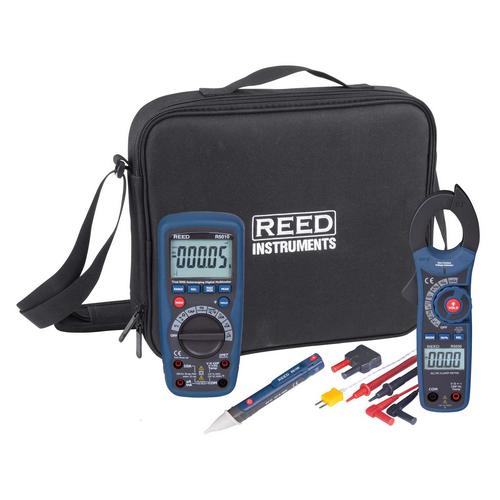

Reed HVAC Combo Kit ST-HVACKIT. ?Reed authorized distributor ?. ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | ?(3.5% rdg. +10 dgt.), 400?: ?(0.3% rdg. + 9 dgt.)4, 40, 400k?, 4M?: ?(0.3% rdg. + 4 dgt.)40M?: ?(2.0% rdg. + 10 dgt.), AC: 400mV ?(1.0% rdg. + 5 dgt.)4, 40, 400, 1000V ?(1.0% rdg. + 3 dgt.)DC: 400mV/4,40,400V ?(0.06% rdg. + 2 dgt.)1000V ?(0.1% rdg. + 5 dgt.), ?(1.0% rdg. +4 dgt.)0.1?, 0.001, 0.01, 0.1k?, 0.001, 0.01M?, ?(50 dgt.), ?(0.1% rdg. + 1 dgt.), AC: ?(2.8% rdg. +30 dgt.)DC: ?(2.5% rdg. +30 dgt.), AC: ?(1.0% rdg. +30 dgt.)DC: ?(0.1% rdg. +4 dgt.), 40, 400nF: ?(3.5% rdg. + 40 dgt.)4, 40, 400?F: ?(3.5% rdg. + 10 dgt.)4000?F, 40mF: ?(5% rdg. + 10 dgt.), AC: ?(1.5% rdg. + 3 dgt.)DC: ?(1.0% rdg. + 3 dgt.), ?(1.0% rdg. + 4.5?F)?(1.0% rdg. + 2.5?C), ?(0.5% rdg. +10 dgt.) |
| Auto Power Off | Yes (after 15 minutes), Yes (after 3 minutes) |
| Autoshut off | Yes (after 15 mins) |
| Backlit Display, Built-in Flashlight, Digital Analog Bargraph, Diode Test, Display Hold, Duty Cycle, Fuse Protection, Kick Stand, Low Battery Indicator, Max/Min, Non-Contact Voltage Detector, Peak Hold, Relative Mode, Replaceable Test Leads, True RMS | Yes |
| Continuity Check | Audible signal if resistance <35?, Audible signal if resistance ?35? |
| Dimensions | 7.9 x 2.6 x 1.5" (200 x 66 x 37 mm), Internal dimensions: 12 x 9.5 x 2" (305 x 241 x 51mm)External dimensions: 12.5 x 10 x 2.5" (318 x 254 x 64mm)Weight: 8.2oz (232g), 7.4 x 3.2 x 2.0" (187 x 81 x 50mm), Length: 48" (1.2m), Tip: 0.2" (5mm),Probe: 6.1" (155mm), Wire: 38" (96.5cm), 6.3 x 1 x 1" (159 x 25 x 25mm) |
| Display | 50,000 count LCD display, 40,000 count LCD display |
| Duty Cycle | Yes (0.1 - 99.9%) |
| Frequency Range | 50 to 60Hz |
| Jaw Opening | 1.2" (30mm), up to 350 MCM |
| Measurement range | -40 to 482?F (-40 to 250?C) |
| Operating Humidity | 0 to 85% |
| Operating Temperature | 32 to 122?F (0 to 50?C), 41 to 104?F (5 to 40?C), 32 to 104?F (0 to 40?C) |
| Overvoltage Category | CAT. III 1000V, CAT. IV 600V, CAT. III 600V, CAT. IV 600V, CAT. III 1000V |
| Power Supply | 9V Battery, 2 AAA Batteries, 2 x AAA |
| Product Certifications | CE, CE, IP67, Drop Tested (2M), CE, UL |
| Range | 400?, 4, 40, 400k?, 4, 40M?, -58 to 1832?F (-50 to 1000?C), 40, 400nF, 4, 40, 400, 4000?F, 40mF, 400, 4000?A, 40, 400mA, 10A, AC: 400mV, 4, 40, 400, 1000VDC: 400mV, 4, 40, 400, 1000V, -148 to 1832?F (-100 to 1000?C), 40, 400Hz, 4, 40, 400kHz, 4, 40, 100MHz, AC: 500mV, 5, 50, 500, 750VDC: 500mV, 5, 50, 500, 1000V, 10kHz, 500?, 5, 50, 500k?, 5, 50M?, -25 to 125%, 50, 500A, 500, 5000nF, 50, 500?F, 5mF |
| Range Selection | Autoranging/Manual, Autoranging / Manual |
| Resolution | 1?F, 1?C, AC/DC: 0.1mV, 0.001, 0.01, 0.1, 1V, 0.00, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001, 0.01MHz, AC: 0.1, 1?A, 0.01,0.1mA, 0.01ADC: 0.01, 0.1?A, 0.001,0.01mA, 0.001A, 0.01, 0.1, 1A, 0.01, 0.1nF, 0.01, 0.1?F, 0.1mF, 0.01%, AC: 0.1mV, 0.001, 0.01, 1VDC: 0.01mV, 0.0001, 0.01, 0.1V, 0.001Hz, 0.001, 0.01nF, 0.0001, 0.001, 0.01, 0.1?F, 0.001mF, 0.01?, 0.0001, 0.001, 0.01k?, 0.001M? |
| Storage Temperature | 14 to 122?F (-10 to 50?C), -4 to 140?F (-20 to 60?C) |
| Voltage Range | 50 to 1000V AC |
| Weight | 1.5oz (42g), 8.1oz (230g), 12oz (342g) |
