| Application | Food Processing, Pre-Rinse, Wash Down, Chemical Transfer and Industrial-Solvent Handling |
| Base Motion Type | Stationary |
| Bearing Construction, Bearings | Permanently Lubricated |
| Corrosion-Resistant | Yes |
| Country of Origin (subject to change) | United States |
| Drive Type, Drive Type - Hose Reels | Spring Return |
| Duty Rating, Features | Heavy Duty |
| Enclosed, Enclosed Reel, Fasteners Included, For Dual Hose, Hose Included, Includes Hose, Includes Leader Hose, Speed Limited Retraction, Twin Hose Compatible | No |
| Finish - Hose Reels, Housing Material, Reel Material, Swivel Material | Stainless Steel |
| Hose Capacity | 66 ft (3/8 in I.D.) |
| Hose Inside Dia., Swivel Inlet Size, Swivel Outlet Size | 3/8 in |
| Hose Length | 66 ft |
| Hose Outlet | 3/8 in (M)NPT |
| Hose Reel Primary Application | Oil |
| Hose Reel Type | Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel |

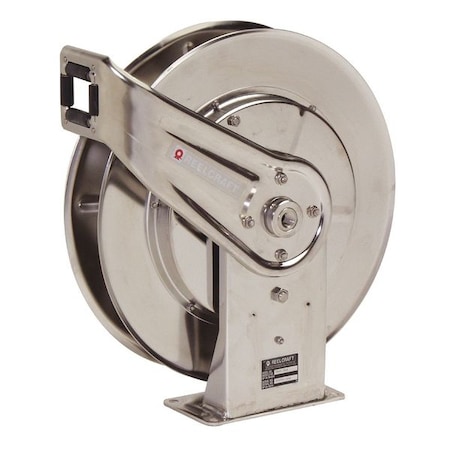

| Item | Hose Reel |
| Latch | Locking |
| Latch Type | Spring Loaded |
| Max. Pressure, Maximum Operating Pressure | 3,000 psi |
| Max. Temp., Maximum Operating Temperature | 210 Degrees F |
| Minimum Operating Temperature | -40 Degrees F |
| Mount Base Height | 9 in |
| Mount Base Width | 5 in |
| Mount Hole Diameter | 1/2 in |
| Mounting | Ceiling, Wall |
| Mounting Hole Center to Center Height | 3 7/8 in |
| Mounting Hole Center to Center Width | 7 7/8 in |
| Number of Guide Arms | Single Arm |
| Number of Mount Holes | 4 |
| Overall Dimensions | 19 3/4 in L x 7 in W x 20 1/4 in H |
| Overall Height | 20 1/4 in |
| Overall Length | 19 3/4 in |
| Overall Width, Reel Width | 7 in |
| Pedestal Type | Single Pedestal |
| Promotion Restriction | Not eligible for promotion |
| Reel Color | Silver |
| Reel Diameter | 11 in |
| Reel Finish | Polished |
| Reel Inlet | 3/8 in (F)NPT |
| Seal Type | EPR |
| Swivel Inlet Gender, Swivel Outlet Gender | Female |
| Swivel Inlet Thread Size, Swivel Outlet Thread Size | 3/8 in - 18 |
| Swivel Inlet Type, Swivel Outlet Type | NPT |
| Weight | 42 lb |
