Reelcraft CU8050LN

Reelcraft CU8050LN

mpn:
CU8050LN
brand:
Reelcraft
manufacturer:
Reelcraft
MPN:
CU8050LN
Description:
CU8050LN CU SERIES REEL WITHOUT HOSE
Weight:
16.45
Weight:
16.45 LB
Preferred Price:
135.47
Price:
135.47
Min Simple Price:
74.03
Absolute Min Price:
105.12
Min Price:
105.12
Dimensions:
[600.0, 17.0, 15.0]
qty:
21
simpleSku:
MjU4Mw:::CU8050LN
sku:
MjU4Mw::MC:CU8050LN@y0
condition:
11
seller:
Resourceful Supply
amzMan:
reelcraft
HazMat:
False
DropShip:
True

Attributes

Key ^Value
ApplicationAir/Water
Availability:Special Order
Base Motion TypeStationary
Bearing ConstructionPermanently Lubricated
BrandReelcraft
Brand Name, Brand:Reelcraft?
Brand, Manufacturer:Reelcraft Industries
Cable/Hose Capacity1/2" X 50' Hose
Color, Color:, Reel ColourBlack
Country:UNITED STATES
Dimensions:14-3/8 in H x 16-3/4 in W x 13-1/4 in D
Drive TypeHand Crank
Drive Type:T-Hand Crank
Duty Rating, Type:Light Duty
Enclosed, Fasteners Included, For Dual Hose, Hose Included, Hose/Cable?, Includes Gooseneck, Includes Hose, Includes Leader HoseNo
FeaturesDesigned For Lighter-Duty Applications That Require Longer Lengths of Low Pressure Air Hose
Finish, Finish:, Reel FinishPowder Coated
Handle Length4 7/8 in
Height (in)16.65
Hose Capacity50 ft (1/2 in ID)
Hose Capacity:1/2 in ID x 3/4 in OD x 50 ft L
Hose IncludedHose Not Included
Hose Inside Dia., Hose Inside Diameter, Hose Outside Dia., Swivel Inlet Size, Swivel Outlet Size1/2 in
Hose Length50 ft
Hose Outlet, Reel Inlet1/2 in (F)NPT
Hose Reel Primary ApplicationAir, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Hose Reel TypeFree Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel
I.D.1/2"
IncludesInstructions
Inlet1/2 in (F)NPTF
Inlet / Outlet1/2" NPT (F) / 1/2" NPT (F)
Item, ProductHand Crank Hose Reel
Latch TypeSpring Loaded
Length50'
Length (in)14.1
ManufacturerReelcraft Industries, Inc
Manufacturer Part Number, MPN, MPN:, SKUCU8050LN
Material, Reel MaterialSteel
Max Temp (?F)150
Maximum Operating Pressure, Maximum Working Pressure, Pressure Rating:, PSI300 psi
Maximum Operating Temperature150 Degrees F
Minimum Operating Temperature-40 Degrees F
Mount Base Height, Reel Width4 in
Mount Base Width9 1/4 in
Mount Hole Diameter3/8 in
Mounting Hole Center to Center Height2 3/8 in
Mounting Hole Center to Center Width6 5/8 in
Mounting LocationBench, Floor, Truck, Wall
Mounting Type:Bench, Floor, Truck and Wall
Number of Mount Holes4
O.D.0.75
Overall Dimensions13 1/4 in L x 16 3/4 in W x 14 3/8 in H
Overall Height14 3/8 in
Overall Length13 1/4 in
Overall Width16 3/4 in
Package Quantity1/Each
Product TypeSimple product, Hose Reel
Reel Diameter6 in
Reel Diameter:13-1/4 in
Reel Width:2-3/8 in
RSPID:, RSPN:20264897
Seal MaterialNitrile
Seal Type:Buna
SeriesC
Series/ModelCU Series
Series:CU
Size Description14.3" H X 16 3/4" L X 13 1/4" W
Swivel Inlet GenderFemale
Swivel Inlet Thread Size, Swivel Outlet Thread Size1/2"-14
Swivel Inlet Thread Size, Swivel Outlet Thread Size1/2 in - 14
Swivel Inlet Type, Swivel Outlet TypeNPT
Swivel Material, Swivel Material:Brass
Swivel Outlet GenderMale
UNSPSC:40142022
UPC699567007579, 7.00E+11
UPC:00699567007579
Weight12 lb, 13 lb, 8.000000, 0.00 LBS
Width (in)14.25

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomResourceful SupplyCU8050LN74.0374.031In StockReelcraft Industries74.03 @ Qty: 1+
thumbzoomunbeatablesale.comRLCRF07599.6999.691In StockREELCRAFT99.69 @ Qty: 1+
thumbzoomautotoolworld.comRLCCU8050LN109.25109.251In StockReelcraft Industries109.25 @ Qty: 1+
WebstaurantStore867CU8050LN109.99109.991In StockReelcraft Industries109.99 @ Qty: 1+
thumbzoomandersonprocess.comCU8050LN114.4114.41In Stock26Reelcraft8.0114.4 @ Qty: 1+
thumbzoomZoroG1681784125.99125.991In StockReelcraft125.99 @ Qty: 1+
thumbzoomrshughes.com699567-00757133.0133.01In Stock35Reelcraft Industries133.0 @ Qty: 1+
thumbzoomhanessupply.comCU8050LN-12581134.11134.111In StockReelcraft Industries, Inc134.11 @ Qty: 1+
thumbzoomintlairtool.comCU8050LN135.24135.241In Stock49Reelcraft13.0135.24 @ Qty: 1+
kirbyrisk.com3477514136.07136.071In StockReelcraft136.07 @ Qty: 1+
thumbzoomtoolfetch.comRL-CU8050LN140.0140.01In StockREELCRAFT140.0 @ Qty: 1+
thumbzoomtoolschest.comRLCRF075161.38161.381In StockReelcraft161.38 @ Qty: 1+
thumbzoomimsbolt.comCU8050LN170.43170.431In StockREELCRAFT170.43 @ Qty: 1+
airgas.comR07CU8050LN171.0171.01In StockReelcraft Industries12.0171.0 @ Qty: 1+
factorysupplyoutlet.com523-CU8050LN178.11178.111In StockReelcraft178.11 @ Qty: 1+
grainger.caRLCCU8050LN211.07890092211.078900921In StockREELCRAFT16.59211.07890092 @ Qty: 1+
B007ICE0MC
Reelcraft CU8050LN

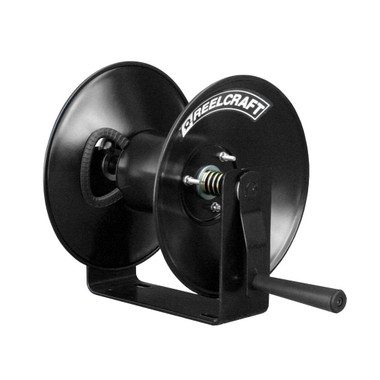

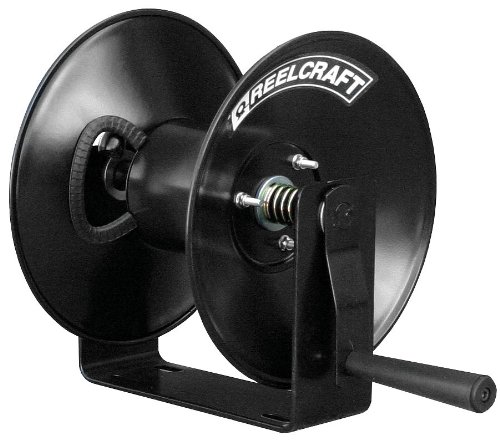

Reelcraft CU8050LN Light Industrial Hand Crank Hose Reel, 50' Air/Water Hose Not Included

Reelcraft CU8050LN Light Industrial Hand Crank Hose Reel, 50zoom
