| (F)NPT Reel Inlet (In.), Hose 1 Inside Diameter, Hose 2 Inside Diameter, Hose Inside Dia., Swivel Inlet Size | 1/4 in |
| Base Motion Type | Stationary |
| Bearing Construction, Bearings | Permanently Lubricated |
| Combination Type | Oxygen/Acetylene |
| Country of Origin (subject to change) | United States |
| Drive Type | Spring Return |
| Enclosed, Fasteners Included, Hose Return Speed Control, Includes Leader Hose, Speed Limited Retraction, Spiral Hose Guard | No |
| Features | Welded Steel Base |
| Fitting Size | 9/16 in x 9/16 in |
| Fitting Type | UNF x UNF |
| For Dual Hose, Hose Included, Include Hose Stop, Includes Hose | Yes |
| For Use With | Gases Such As Oxygen, Acetylene |
| Hose 1 Color, Reel Color | Red |
| Hose 1 Cover Material, Hose 1 Tube Material, Hose 2 Cover Material, Hose 2 Tube Material | Rubber |
| Hose 1 Fitting A Gender, Hose 1 Fitting B Gender, Hose 2 Fitting A Gender, Hose 2 Fitting B Gender, Swivel Inlet Gender | Female |
| Hose 1 Fitting A Material, Hose 1 Fitting B Material, Hose 2 Fitting A Material, Hose 2 Fitting B Material | Brass |
| Hose 1 Fitting A Size, Hose 1 Fitting B Size, Hose 2 Fitting A Size, Hose 2 Fitting B Size, Swivel Outlet Size | 9/16 in |
| Hose 1 Fitting A Type, Hose 1 Fitting B Type, Hose 2 Fitting A Type, Hose 2 Fitting B Type, Swivel Outlet Type | UNF |
| Hose 1 Length, Hose 2 Length, Hose Length | 25 ft |
| Hose 1 Outside Diameter, Hose 2 Outside Diameter | 1/2 in |
| Hose 2 Color | Green |
| Hose Capacity | 25 ft (1/4 in ID) |
| Hose End Configuration | 9/16 in F UNF |
| Hose Grade, Welding Hose Grade | R |
| Hose Outlet | 9/16 in UNF |
| Hose Reel Primary Application | Welding |
| Hose Reel Type | Vehicle, Wall Mount Hose Reel |

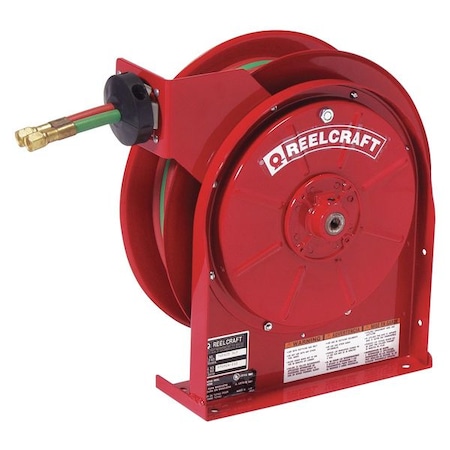

| Item | Welding Hose Reel |
| Latch, Latch Type | Locking |
| Max. Pressure, Maximum Operating Pressure | 200 psi |
| Max. Temp. | 150 Degrees F |
| Maximum Operating Temperature | 150 Degrees F |
| Meets/Exceeds | R.M.A. and C.G.A. Type V.D. Specifications |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -40 Degrees F |
| Mount Base Height | 11 5/8 in |
| Mount Base Width | 4 in |
| Mount Hole Diameter | 5/16 in |
| Mounting | Bench or Truck, Ceiling, Floor, Wall |
| Mounting Hole Center to Center Height | 9 3/4 in |
| Mounting Hole Center to Center Width | 2 1/2 in |
| Overall Dimensions | 14 1/4 in L x 6 in W x 14 3/8 in H |
| Overall Height | 14 3/8 in |
| Overall Length | 14 1/4 in |
| Overall Width, Reel Width | 6 in |
| Reel Diameter | 7 in |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Seal Material | EPM |
| Seal Type | EPR |
| Standards | UL Listed |
| Swivel Inlet Thread Size | 1/4 in - 18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Aluminum |
| Swivel Outlet Gender | Male |
| Swivel Outlet Thread Size | 9/16 in - 18 |
| Thread | 9/16"-18 UNF |
| Weight | 26 lb |
