Description:

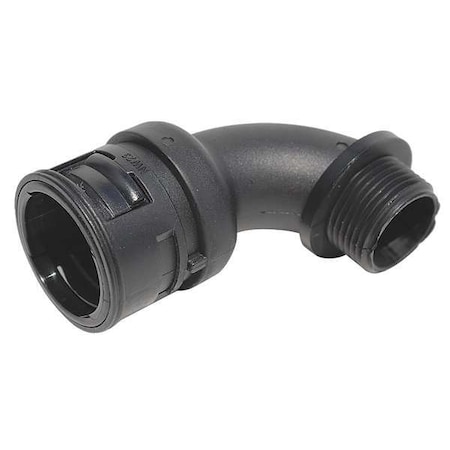

Elbow 90 Degrees, Connection Type/Size 1/2 in NPT, Compatible Nominal Size 3/8 in, Corrugated Tubing Fitting Material Polyamide 6, Fitting Length 1.44 in, Nominal Size 3/8 in, Tubing Size 0.472 in, Chemical Resistant Yes, For Use With Tubing Profiles F, G, and M, Description/Special Features Free of Cadmium, Halogen, and Phosphor, Wide Range of Applications, Corrugated Tubing Fitting Color Black, IP Rating 67, Self Extinguishing Yes
Attributes
| Key ^ | Value |
|---|---|
| Chemical Resistant, Self Extinguising | Yes |
| Color, Corrugated Tubing Fitting Color | Black |
| Compatible Nominal Size, Nominal Size | 3/8 in |
| Connection Type/Size | 1/2 in NPT |
| Corrugated Tubing Fitting Item | 90 Degrees Elbow |
| Corrugated Tubing Fitting Material | Polyamide 6 |
| Description/Special Features | Free of Cadmium, Halogen, and Phosphor, Wide Range of Applications |
| Fitting Height, Fitting Width | 0.81 in |
| Fitting Length | 1.44 in |
| Fitting Thread Length | 0.49 in |
| For Use With | Tubing Profiles F, G, and M |
| IP Rating | 67 |
| Item | Elbow 90 Degrees |
| Min. Operating Temperature | -40 Degrees F |
| Operating Temp. Range | -40 Degrees F to 302 Degrees F |
| Self Extinguishing | Flame Retardant |
| Standards | ASTM D 2863, DIN 53474, EN 60695, ISO 179/1eA, ISO 4589, ISO 527, UL1696, UL94 |
| Temp. Range | -40 Degrees to 221 Degrees F |
| Thread Gender | Male |
| Tubing Size | 0.472 in |
