Rheem / Ruud ES85-36-G
Rheem / Ruudzoom

Rheem / Ruud ES85-36-G

mpn:
ES85-36-G
brand:
Rheem-Ruud
manufacturer:
Rheem-Ruud
MPN:
ES85-36-G
Weight:
21.0625
Weight:
21.25 LB
Preferred Price:
8944.02
Price:
8944.02
Min Simple Price:
5053.12
Absolute Min Price:
7175.43
Min Price:
7175.43
Dimensions:
[66.0, 41.0, 41.0]
qty:
16
simpleSku:
MjQwMA:::ES85-36-G
sku:
MjQwMA::CF:ES85-36-G@y0
condition:
11
seller:
AmazonTP
amzMan:
rheem-ruud
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps AC87 A
ApplicationFerrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Automatic ThermostatYes
AvailabilityIn Stock, ships within 2 days
BrandRheem-Ruud
Cold Inlet Size, Hot Outlet Size1 1/2 in
Cold Inlet Type, Connection Type, Hot Outlet TypeNPT
Commercial / Residential, Industry Type, Market, Residential / CommercialCommercial
ComplianceUL Certified; UL Standard 1453; NC Code Compliant; DOE Test Procedures; ASHRAE Standard
Connection LocationCold Side/Hot Top
Connection Size3/4"
Country of Origin (subject to change)United States
Current150 A
Current Stock4
Element MaterialStainless Steel
Equivalent BtuH122,839 BtuH
FeaturesHeavy Duty; Long Life Tank Design; Automatic Temperature Control; 98% Thermal Efficiency; Minimal Standby Heat Loss
First Hour RatingNot Applicable
Fuel TypeElectric
Height to Cold Inlet4.8 in
Height to Cold Side Connection4 3/4 in
Height to Hot Outlet57.7 in
Height to Hot Side Connection, Overall Height - Water Heaters57 11/16 in
Height to T and P Opening49-1/2"
Height to T and P Valve49.5 in
Height to Top of Heater, Height to Top of Vent Connection57.69"
Included Valve TypeT & P Relief
Included ValvesTemperature and Pressure Relief
IncludesFull Port Drain Valve, System Sentinel and Dielectric Nipples, T and P Valve
International ShippingNo
Item, Item - Water HeatersElectric Water Heater
Jacket Dia.28 1/4 in
Manufacturer Warranty Length1 yr Limited Parts, 3 yr Limited Tank
Manufacturers Warranty Length3 yr Limited Tank, 1 yr Limited Parts
MaterialHAWA
Max. Pressure, Maximum Water Pressure150 psi
Maximum Delivered Temperature190 Degrees F
Maximum Recovery Flow Rate372 gph @ 40 Degrees F
Minimum Delivered Temperature90 Degrees F
MpnES85-36-G
Number of Elements6
Operating Voltage240V AC
Overall Depth, Overall Width34 in
Overall H x Dia.57.7 in x 28.25 in
Overall Height57-11/16"
Phase1 or 3
Phase - Water Heaters1/3
Power Consumption, Total Watts36,000 W
Recovery @ 100 F Rise149 gph
Recovery @ 110 F Rise135 gph
Recovery @ 120 F Rise124 gph
Recovery @ 130 F Rise115 gph
Recovery @ 140 F Rise108 gph
Recovery @ 50 F Rise298 gph
Recovery @ 70 F Rise213 gph
Recovery @ 90 F Rise165.0 gph
Recovery Rate @ Rise106 gph @ 140 Degrees F, 115 gph @ 130 Degrees F, 124 gph @ 120 Degrees F, 135 gph @ 110 Degrees F, 149 gph @ 100 Degrees F, 165 gph @ 90 Degrees F, 186 gph @ 80 Degrees F, 213 gph @ 70 Degrees F, 248 gph @ 60 Degrees F, 298 gph @ 50 Degrees F
SKUCU-3645373434
StandardsUL; CSA; AHRI
SubCategoryPlumbing
System of MeasurementInch
Tank Capacity85 gal.
Tank Capacity - Plumbing85.0 gal
Tank Diameter28.25 in
Tank Insulation MaterialPolyurethane
Tank Lining MaterialVitreous Glass
Temp. Range120 Degrees to 180 Degrees F
Thermal Efficiency98 %
Thermostat MountingSurface
UPC203524724234
Vent TypeStandard
Voltage240 VAC
Voltage - Water Heaters240
Water Connection1-1/2 in NPT
Water Connection LocationSide, Top
Water Heater DesignWhole House

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
AmazonTPB00DX7N5TU5053.125053.121In Stock5Rheem-Ruud5053.12 @ Qty: 1+
thumbzoomsimsupply.comCU-36453734346165.886165.881In StockRheem-Ruud6165.88 @ Qty: 1+
thumbzoomsustainablesupply.comC19452726894.716894.711In StockRheem337.06894.71 @ Qty: 1+
thumbzoomZoroG51270017230.07230.0116Rheem-Ruud337.07230.0 @ Qty: 1+
B08LZKJ6CF
Rheem / Ruud ES85-36-G

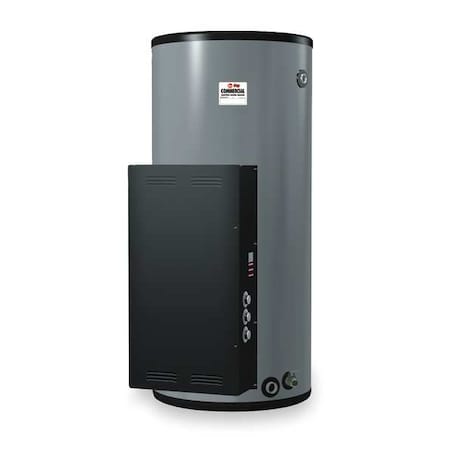

Rheem-Ruud Commercial Electric Water Heater, 85 gal. Tank Capacity, 480VAC, 36,000 Total Watts - ES85-36-G

Rheem-Ruud Commercial Electric Water Heater, 85 gal. Tank Capacity, 480VAC, 36,000 Total Watts - ES85-36-Gzoom
