mpn:
brand:
manufacturer:
MPN:
Description:

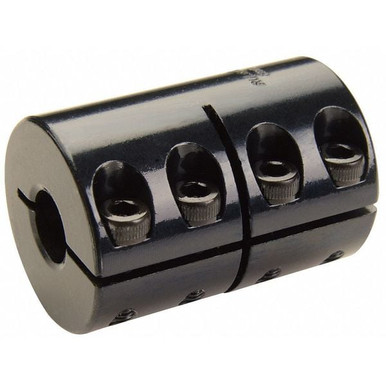

Ruland part number CLX-4-4-F is a steel one-piece rigid coupling with 1/4" x 1/4" bores. Download a 2D/3D CAD file or purchase the CLX-4-4-F directly from the manufacturer.
Weight:
0.07
Weight:
0.07 LB
Preferred Price:
36.21
Price:
36.21
Min Simple Price:
19.79
Absolute Min Price:
28.1
Min Price:
28.1
Dimensions:
[3.0, 1.0, 1.0]
qty:
388
simpleSku:
TA0MTg:::CLX-4-4-F
sku:
TA0MTg::GC:CLX-4-4-F@y0
condition:
11
seller:
AmazonTP
amzMan:
ruland manufacturing
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque |
| B1 Max Shaft Penetration, B2 Max Shaft Penetration | 0.500 in |
| Bore (B1), Small Bore (B2) | 0.2500 in |
| Bore Dia. | 1/4 in |
| Bore Tolerance | +0.0020 in / +0.0005 in |
| Brand | RULAND |
| Category | Hardware, Fasteners, Accessories |
| Clearance Dia. (In.) | 0.815 |
| Clearance Dia., Clearance Diameter (C) MAX | 0.815 in |
| Color, Finish, Screw Finish | Black Oxide |
| Country of Origin | USA |
| Country of Origin (subject to change) | United States |
| Current Stock | 23 |
| Design | Four Vibration Resistant Socket Capscrews |
| Finish Specification | Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw, Screw Size, Screw Size (In.) | #4-40 |
| Full Bearing Support Required?, International Shipping | No |
| Hex Wrench Size | 3/32 in |
| Item, Item - Rigid Shaft Couplings | Rigid Shaft Coupling |
| Length (L), Overall Length | 1 in |
| Machined From | Bar Stock |
| Manufacturer, Mfr | Ruland Manufacturing |
| Material | Black Oxide 1215 Lead Free Steel |
| Material - Couplings | 1215 Lead Free Steel |
| Material Specification | 1215 Carbon Steel Bar |
| Max. Torque (In.-Lbs.) | 200 |
| Max. Torque, Rated Torque | 200 in-lb |
| Maximum Speed | 4,000 RPM |
| Moment of Inertia | 0.0045 lb-in |
| Mpn | CLX-4-4-F |
| Note 1 | Performance ratings are for guidance only. The user must determine suitability for a particular application. |
| Number of Screws | 4 ea |
| Nypatch? Anti-Vibration Hardware?, Precision Honed Bores?, Zero-Backlash? | Yes |
| Outer Diameter (OD), Outside Dia. | 5/8 in |
| Package | Bag |
| Product Status | Active |
| Prop 65 | Warning: This product contains a chemical known to the State of California to cause cancer. Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. |
| Provides | Extra Holding Power for Higher Load Applications without Marring Shafts |
| Recommended Shaft Tolerance | +0.0000 in / -0.0005 in |
| Screw Location (R) | 0.219 in |
| Screw Material | Alloy Steel with |
| Seating Torque | 15 lb-in |
| Series | - |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| SKU | ZO-G1478127 |
| Specifications | 0.625" (15.88mm) Outer Diameter x 1.000" (25.40mm) Length |
| Standards | REACH Compliant, RoHS2 Compliant |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Tariff Code | 8483.60.8000 |
| Temperature | -40?F to 350?F (-40?C to 176?C) |
| Type | Rigid Coupling, One Piece Clamp Type, Without Keyway |
| UNSPC | 31163009 |
| UPC | 634529004548 |
| UPC Code | 63452900454 |
| Weight (lbs) | 0.073100 |
| With Keyway / Without Keyway | Without Keyway |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B002SJSUGC | 19.79 | 19.79 | 1 | In Stock | 2 | Ruland Manufacturing | 19.79 @ Qty: 1+ | ||
 | cbtcompany.com | CLX-4-4-F | 26.42 | 26.42 | 1 | In Stock | RULAND MANUFACTURING | 26.42 @ Qty: 1+ | ||
| us.rs-online.com | 72198490 | 27.9 | 27.9 | 1 | In Stock | Ruland Manufacturing | 27.9 @ Qty: 1+ | |||
 | Ruland | CLX-4-4-F | 30.32 | 30.32 | 1 | In Stock | Ruland | 0.0731 | 30.32 @ Qty: 1+ | |
| motionindustries.com | 00243414 | 33.79 | 33.79 | 1 | In Stock | Ruland Manufacturing Co Inc | 33.79 @ Qty: 1+ | |||
 | Zoro | G1478127 | 34.71 | 34.71 | 1 | In Stock | Ruland | 0.08 | 34.71 @ Qty: 1+ | |
 | sustainablesupply.com | C1671651 | 37.55 | 37.55 | 1 | In Stock | Ruland Manufacturing | 0.08 | 37.55 @ Qty: 1+ | |
 | simsupply.com | ZO-G1478127 | 38.93 | 38.93 | 1 | 23 | RULAND | 38.93 @ Qty: 1+ | ||
 | Raptor Supplies | AB8ZLH | 55.2529575 | 55.2529575 | 1 | In Stock | RULAND MANUFACTURING | 55.2529575 @ Qty: 1+ | ||
| Digi-Key | 13612480 | 55.32 | 55.32 | 1 | 388 | Ruland Manufacturing | 55.32 @ Qty: 1+ |
