Description:

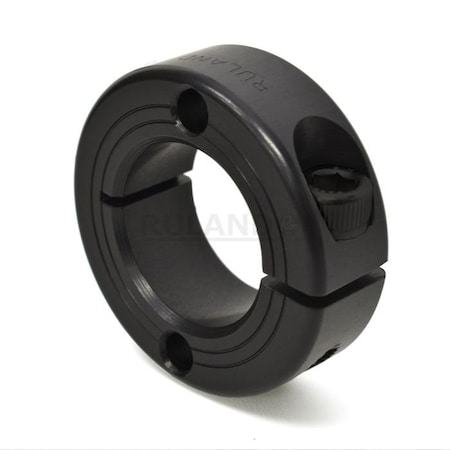

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Clearance Diameter 33.7 mm, Collar Width 11 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
Attributes
| Key ^ | Value |
|---|---|
| Bore Diameter, For Shaft Diameter | 1/2 in |
| Bore Thread Size, Inside Height to Flat, Keyway Depth, Keyway Width | Not Applicable |
| Bore Tolerance | +0.0020/+0.0005 in |
| Bore Type | Round |
| Clearance Diameter | 33.7 mm |
| Collar Construction | 1-Piece |
| Collar Material | Carbon Steel |
| Collar Material Grade | 1215 |
| Collar Outside Diameter | 30 mm |
| Collar Width, Screw Location from Center | 11 mm |
| Included Screws | Clamp Screw |
| Item | Mountable Shaft Collar |
| Minimum Operating Temperature | -40 Degrees C |
| Mount Hole Size | 4.31 mm |
| Screw Material | Alloy Steel |
| Screw Seating Torque | 4.6 N-m |
| Screw Thread Size | M4 |
| Shaft Tolerance | +0.0000/-0.0005 in |
| Width Tolerance | +0.076/-0.254 mm |
