Description:

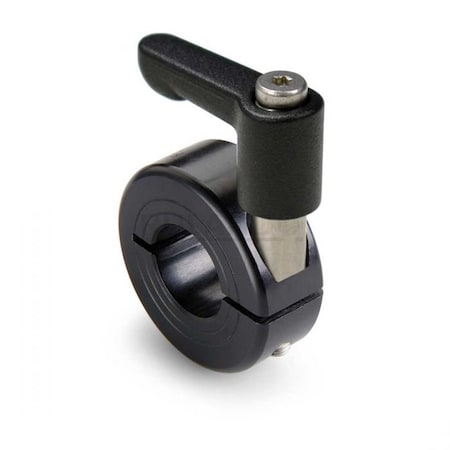

Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion Resistant
Attributes
| Key ^ | Value |
|---|---|
| Bore Diameter, For Shaft Diameter | 1 1/2 in |
| Bore Thread Size, Inside Height to Flat, Keyway Depth, Keyway Width | Not Applicable |
| Bore Tolerance | +0.0020/+0.0005 in |
| Bore Type | Round |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Outside Diameter | 60 mm |
| Collar Width | 15 mm |
| Handle Color | Black |
| Handle Material | Zinc |
| Item | Quick Clamping Shaft Collar |
| Lever Height | 40.5 mm |
| Lever Length | 45 mm |
| Lever Part Number | LF45-CL-M6: 20-ZS |
| Screw Location from Center | 24.99 mm |
| Screw Material | Stainless Steel |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 |
| Shaft Tolerance | +0.0000/-0.0005 in |
| Width Tolerance | +0.076/-0.254 mm |
