Description:

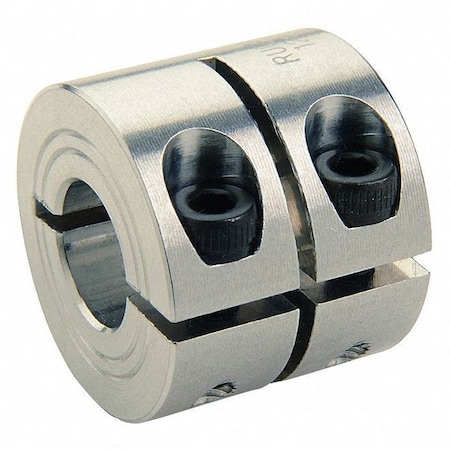

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 10 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 19.6 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
Attributes
| Key | Value |
|---|---|
| Bore Dia. | 10 mm |
| Bore Diameter | 10 mm |
| Bore Thread Size | Not Applicable |
| Bore Width | Not Applicable |
| Clearance Dia. | 26.3 mm |
| Clearance Diameter | 26.3 mm |
| Collar Outside Diameter | 24 mm |
| Collar Style | Clamp |
| Collar Width | 19.6 mm |
| Dimension Type | Metric |
| For Shaft Diameter | 10 mm |
| Inside Height to Flat | Not Applicable |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Lever Height | Not Applicable |
| Lever Length | Not Applicable |
| Material | 2024 Aluminum |
| Mount Hole Thread Size | Not Applicable |
| Number of Pieces | 1 |
| Outside Dia. | 24 mm |
| Screw Size | M3 |
| Screw Thread Size | M3 |
| Width | 20 mm |
| Width Tolerance | +0.076/-0.254 mm |
