| Bore Dia. | 12mm x 6mm |
| Clearance Dia. (In.) | 1.25 in |
| Clearance Dia. (mm) | 31.8 |
| Country of Origin (subject to change) | United States |
| Finish | Bright |

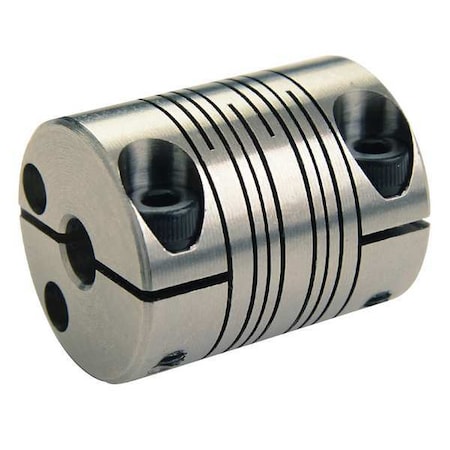

| Item | Motion Control Coupling |
| Item - Motion Control Couplings | Motion Control Coupling |
| Length through Bore | 17.02 mm |
| Length through Bore (In.) | 0.67 |
| Length through Bore (mm) | 17.02 |
| Material | Aluminum |
| Material - Couplings | Aluminum |
| Max. Angular Misalignment | 3 Degrees |
| Max. Axial Misalignment (In.) | +/-0.01 |
| Max. Bore (mm) | 12 mm |
| Max. Parallel Misalignment (In.) | 0.015 in |
| Max. RPM | 6,000 RPM |
| Max. Temp. | 225 Degrees F |
| Max. Temp. Range (F) | 225 Degrees |
| Min. Bore (mm) | 6 |
| Outside Dia. | 31.8 mm |
| Outside Dia. (In.) | 1.25 |
| Outside Dia. (mm) | 31.8 mm |
| Overall Length | 38.1 mm |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Rated Torque | 52 in-lb |
| Screw Size | M4 |
| Screw Size (mm) | M4 |
| Screw Type | Cap Screw |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| Size | PCMR32 |
| Style | 4-Beam Clamp |
| Torque (In.-Lbs.) | 52 |
| Torsional Stiffness (Deg./In.-Lbs.) | 0.124 |
