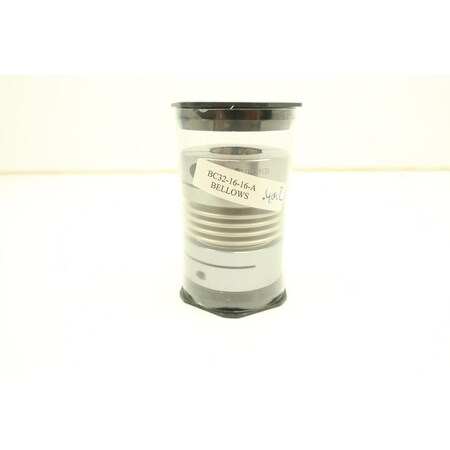

Ruland Manufacturing Bc32-16-16-a Coupling,bellows Clamp,bore 1x1 In

Ruland Manufacturing Bc32-16-16-a Coupling,bellows Clamp,bore 1x1 Inzoom

Attributes

Key Value
Angular Misalignment2.0?
Axial Motion0.020 in
B1 Max Shaft Penetration1.099 in
B2 Max Shaft Penetration1.099 in
Balanced DesignYes
Bellows Attachment Meth.Epoxy
Bore (B1)1.0000 in
Bore Dia.1" x 1"
Bore Tolerance+0.001 in / -0.000 in
Country of OriginUSA
Dynamic Torque Non-Reve.200 lb-in
Dynamic Torque Reversing100 lb-in
Finish SpecificationSulfuric Anodized MIL-A.
Forged Clamp ScrewM5
Full Bearing Support Re.Yes
Hex Wrench Size4.0 mm
Hub Width (LH)0.810 in
Item - Motion Control C.Motion Control Coupling
Length (L)2.413 in
Length Tolerance+/- 0.030 in
ManufacturerRuland Manufacturing
Material - CouplingsAluminum
Material SpecificationHubs: 2024-T351 Aluminu.
Max. RPM10,000
Maximum Speed10,000 RPM
Moment of Inertia0.265578 lb-in
Note 1Stainless steel hubs ar.
Note 2Torque ratings are at m.
Note 3Performance ratings are.
Note 4Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)2.000 in
Outside Dia.2.000"
Overall Length2.315"
Parallel Misalignment0.010 in
Rated Torque400 in.-lb.
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Seating Torque9.5 Nm
Shaft Locking Type - Co.1 Piece Clamp
Small Bore (B2)1.0000 in
Static Torque400 lb-in
Tariff Code8483.60.8000
Temperature-40?F to 200?F (-40?C t.
Torsional Stiffness950 lb-in/Deg
UNSPC31163018
UPC634529063002
UPC Code63452906300
Weight (lbs)0.408700
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB016APOVX0162.691In Stock5Ruland Manufacturing Co., Inc.162.69 @ 1
thumbzoomZoroG502487917165.81In StockRuland165.8 @ 1
thumbzoomRulandBC32-16-16-A180.091In StockRuland0.4087180.09 @ 1
us.rs-online.com72181455201.961In StockRuland Manufacturing201.96 @ 1
Grainger2AUZ4204.251In Stock22RULAND MANUFACTURING0.49204.25 @ 1
thumbzoomsustainablesupply.comC1673026228.781In StockRuland Manufacturing0.49228.78 @ 1
motionindustries.com02336511246.341In StockRuland Manufacturing Co Inc246.34 @ 1
thumbzoomRaptor SuppliesAB9BKC299.5391881In StockRULAND MANUFACTURING299.539188 @ 1
