mpn:
brand:
manufacturer:
MPN:
Weight:
0.05
Weight:
0.05 LB
Preferred Price:
45.21
Min Offer Price:
38.64
Price:
45.21
Min Simple Price:
24.71
Absolute Min Price:
35.08
Min Price:
35.08
Dimensions:
[3.0, 1.0, 1.0]
qty:
21
simpleSku:
TA0MTg:::CLX-4-4-A
sku:
TA0MTg::TO:CLX-4-4-A@y0
condition:
11
seller:
us.rs-online.com
amzMan:
ruland manufacturing
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque |
| B1 Max Shaft Penetration, B2 Max Shaft Penetration | 0.500 in |
| Bore (B1), Small Bore (B2) | 0.2500 in |
| Bore Dia. | 1/4 in |
| Bore Tolerance | +0.0020 in / +0.0005 in |
| Brand | RULAND |
| Category | Hardware, Fasteners, Accessories |
| Clearance Dia. (In.) | 0.815 |
| Clearance Dia., Clearance Diameter (C) MAX | 0.815 in |
| Country of Origin | USA |
| Country of Origin (subject to change) | United States |
| Current Stock | 23 |

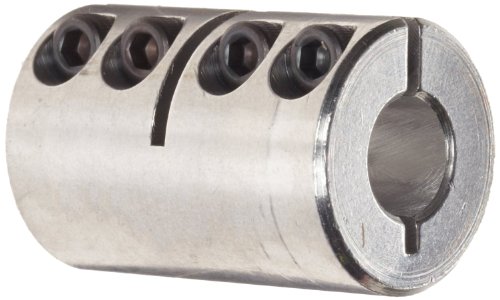

| Description | 1/4"X1/4" ALUM RIGID COUPLING |
| Design | Four Vibration Resistant Socket Capscrews |
| Digi-Key Part Number | 3188-CLX-4-4-A-ND |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw, Screw Size, Screw Size (In.) | #4-40 |
| Full Bearing Support Required?, International Shipping | No |
| Hex Wrench Size | 3/32 in |
| Item, Item - Rigid Shaft Couplings | Rigid Shaft Coupling |
| Length (L), Overall Length | 1 in |
| Machined From | Bar Stock |
| Manufacturer Product Number, Mpn | CLX-4-4-A |
| Manufacturer, Mfr | Ruland Manufacturing |
| Material Specification | 2024-T351 Aluminum Bar |
| Material, Material - Couplings | 2024 Aluminum |
| Max. Torque | 200 in-lb |
| Max. Torque (In.-Lbs.) | 200 |
| Maximum Speed | 4,000 RPM |
| Moment of Inertia | 0.0018 lb-in |
| Note 1 | Performance ratings are for guidance only. The user must determine suitability for a particular application. |
| Number of Screws | 4 ea |
| Nypatch? Anti-Vibration Hardware?, Precision Honed Bores?, Zero-Backlash? | Yes |
| Outer Diameter (OD), Outside Dia. | 5/8 in |
| Package | Bag |
| Product Status | Active |
| Provides | Extra Holding Power for Higher Load Applications without Marring Shafts |
| Rated Torque | 190 in-lb |
| Recommended Shaft Tolerance | +0.0000 in / -0.0005 in |
| Screw Finish | Black Oxide |
| Screw Location (R) | 0.219 in |
| Screw Material | Alloy Steel with |
| Seating Torque | 15 lb-in |
| Series | - |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| SKU | ZO-G0322296 |
| Specifications | 0.625" (15.88mm) Outer Diameter x 1.000" (25.40mm) Length |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Tariff Code | 8483.60.8000 |
| Temperature | -40?F to 225?F (-40?C to 107?C) |
| Type | Rigid Coupling, One Piece Clamp Type, Without Keyway |
| UNSPC | 31163009 |
| UPC | 634529004531 |
| Weight (lbs) | 0.029200 |
| With Keyway / Without Keyway | Without Keyway |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| us.rs-online.com | 74731376 | 24.71 | 24.71 | 1 | In Stock | Ruland Manufacturing | 24.71 @ Qty: 1+ | |||
 | Ruland | CLX-4-4-A | 30.71 | 30.71 | 1 | In Stock | Ruland | 0.0292 | 30.71 @ Qty: 1+ | |
 | sustainablesupply.com | C1671648 | 38.46 | 38.46 | 1 | In Stock | Ruland Manufacturing | 0.04 | 38.46 @ Qty: 1+ | |
| motionindustries.com | 02336670 | 43.21 | 43.21 | 1 | In Stock | Ruland Manufacturing Co Inc | 43.21 @ Qty: 1+ | |||
 | Zoro | G0322296 | 43.69 | 43.69 | 1 | In Stock | Ruland | 0.04 | 43.69 @ Qty: 1+ | |
 | simsupply.com | ZO-G0322296 | 47.6 | 47.6 | 1 | 23 | RULAND | 47.6 @ Qty: 1+ | ||
 | Digi-Key | 13612743 | 55.89 | 55.89 | 1 | 17555 | Ruland Manufacturing | 55.89 @ Qty: 1+ | ||
 | Raptor Supplies | AB8ZLE | 59.21955 | 59.21955 | 1 | In Stock | RULAND MANUFACTURING | 59.21955 @ Qty: 1+ |
