Ruland CL-31-SS

B0063H699U

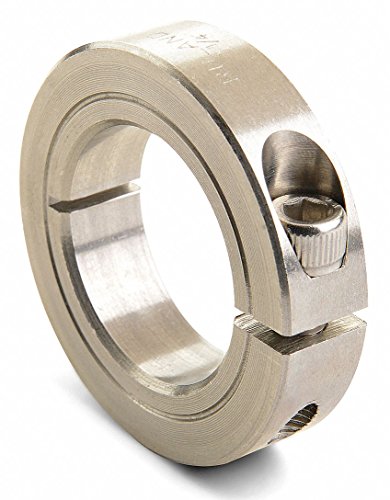

Shaft Collar, Clamp, 1Pc, 1-15/16 in, 303 SS

Shaft Collar, Clamp, 1Pc, 1-15/16 in, 303 SSzoom

Attributes

Key Value
Bore (B)1.9375 in
Bore Dia.1 15/16 in
Bore Tolerance+0.0020 in / +0.0005 in
Bore Type - CollarsPlain Bore
CategoryHardware, Fasteners, Ac.
Clearance Dia.3.273 in
Clearance Diameter (C) .3.273 in
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Description1-15/16" STAINLESS SHAF.
Digi-Key Part Number3188-CL-31-SS-ND
Dimension TypeInch
Finish SpecificationBright, No Plating
Forged Clamp Screw5/16-24
Hex Wrench Size1/4 in
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
Manufacturer Product Nu.CL-31-SS
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
MfrRuland Manufacturing
Note 1Performance ratings are.
Note 2No backslot
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)3 in
Outside Dia.3 in
PackageBag
Product StatusActive
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)1.250 in
Screw Material18-8 300 Series Stainle.
Screw Size5/16"-24
Seating Torque190 lb-in
Series-
Shaft Locking Type - Co.1 Piece Clamp
Specifications3.000" (76.20mm) Outer .
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
UNSPC31162811
UPC634529000724
Weight (lbs)0.776600
Width11/16 in
Width (W)0.688 in
Width Tolerance+0.003 in / -0.010 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG194838773.641In Stock10Ruland0.7673.64 @ 1
thumbzoomsustainablesupply.comC167144774.541In StockRuland Manufacturing0.7674.54 @ 1
thumbzoomRulandCL-31-SS102.841In StockRuland0.7766102.84 @ 1
thumbzoomDigi-Key13610839148.66125Ruland Manufacturing148.66 @ 1
thumbzoomRaptor SuppliesAB8YXG161.66937151In StockRULAND MANUFACTURING161.6693715 @ 1
us.rs-online.com72621150192.71In StockRuland Manufacturing192.7 @ 1
