Ruland CL-32-ST

B0063KLJG0

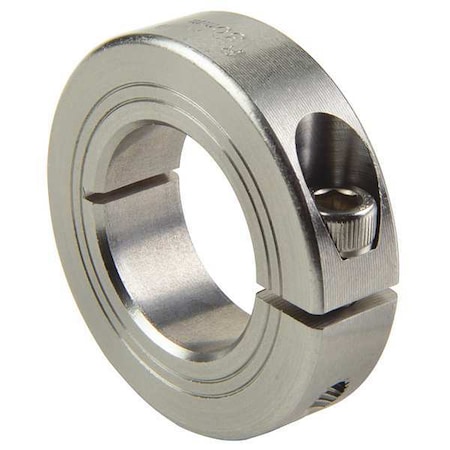

Ruland CL-32-ST One-Piece Clamping Shaft Collar, 316 Stainless Steel, 2.000" Bore Manufactured and Shipped from Massachusetts

Ruland CL-32-ST One-Piece Clamping Shaft Collar, 316 Stainless Steel, 2.000" Bore Manufactured and Shipped from Massachusettszoom

Attributes

Key Value
Bore (B)2.0000 in
Bore Dia.2 in
Bore Diameter2 in
Bore Thread SizeNot Applicable
Bore Tolerance+0.0020 in / +0.0005 in
bore tolerance:+.002 / +.0005 in
Bore Type - CollarsPlain Bore
bore type:Plain
Bore WidthNot Applicable
CategoryHardware, Fasteners, Ac.
Clearance Dia.3.273 in
Clearance Diameter3.27 in
Clearance Diameter (C) .3.273 in
clearance diameter max:3.273 in
Collar Outside Diameter3 in
Collar StyleClamp
Collar Width11/16 in
construction:One Piece - Clamp
Country of OriginUSA
Dimension TypeInch
Finish SpecificationBright, No Plating
For Shaft Diameter2 in
Forged Clamp Screw5/16-24
forged clamp screw:5/16-24x7/8
harmonization code:8483608000
Hex Wrench Size1/4 in
inside diameter:2.0000 in
Inside Height to FlatNot Applicable
Item - Shaft CollarsShaft Collar
Keyway DepthNot Applicable
Keyway WidthNot Applicable
Lever HeightNot Applicable
Lever LengthNot Applicable
locking device:Clamp
locknut finish:Bright
ManufacturerRuland Manufacturing
Material316 Stainless Steel
Material - Collars316 Stainless Steel
Material SpecificationType 316L Austenitic, N.
material:Stainless Steel - 316
MfrRuland Manufacturing
Mount Hole Thread SizeNot Applicable
Note 1Performance ratings are.
Note 2No backslot
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Deg.
Outer Diameter (OD)3 in
Outside Dia.3 in
outside diameter:3.0000 in
PackageBag
Product StatusActive
rated temperature:-40 to +350 F
Recommended Shaft Toler.+0.0000 in / -0.0005 in
screw / locking style:Exposed Screw Head
Screw FinishBright
screw finish:Bright
Screw Location (R)1.250 in
Screw Material316 Stainless Steel
screw material:316 Stainless Steel
Screw Size5/16"-24
Screw Thread Size5/16"-24
Seating Torque190 lb-in
Series-
Shaft Locking Type - Co.1 Piece Clamp
Specifications3.000" (76.20mm) Outer .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
type series:CL
UNSPC31162811
UPC634529111994
Weight (lbs)0.737100
weight:0.7 lb
Width11/16 in
Width (W)0.688 in
Width Tolerance+0.003 in / -0.010 in, .
width tolerance:+.003 / -.010 in
width:0.6880 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7933107126.9911Ruland0.7126.99 @ 1
thumbzoomsustainablesupply.comC1645969130.631In StockRuland Manufacturing0.7130.63 @ 1
thumbzoomRulandCL-32-ST148.031In StockRuland0.7371148.03 @ 1
Grainger30VK53172.441In StockRULAND MANUFACTURING172.44 @ 1
Digi-Key13612180208.77125Ruland Manufacturing208.77 @ 1
thumbzoomRaptor SuppliesAF9XBG248.55450751In StockRULAND MANUFACTURING248.5545075 @ 1
us.rs-online.com72621152277.441In StockRuland Manufacturing277.44 @ 1
thumbzoomcbtcompany.comCL-32-ST282.811In StockRULAND MANUFACTURING282.81 @ 1
thumbzoommotionindustries.com04804257299.011In StockRuland Manufacturing Co Inc299.01 @ 1
