mpn:
brand:
manufacturer:
MPN:
Weight:
0.069
Weight:
0.005625 LB
Preferred Price:
150.06
Price:
150.06
Min Simple Price:
82.0
Absolute Min Price:
116.44
Min Price:
116.44
Dimensions:
[3.0, 1.0, 1.0]
qty:
21
simpleSku:
TA0MTg:::DCD16-4-4-A
sku:
TA0MTg::SE:DCD16-4-4-A@y0
condition:
11
seller:
Zoro
amzMan:
ruland manufacturing
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Angular Misalignment | 2.0? |
| Axial Motion, maximum axial misalignment: | 0.012 in |
| B1 Max Shaft Penetration, B2 Max Shaft Penetration | 0.654 in |
| B1 Min Shaft Penetration, B2 Min Shaft Penetration | 0.314 in |
| Balanced Design, Full Bearing Support Required?, Zero-Backlash? | Yes |
| Bore (B1), Small Bore (B2) | 0.2500 in |
| bore - side 1:, bore - side 2: | 0.250 in |
| Bore Dia. | 1/4 in x 1/4 in |
| Bore Size | 0.250 x 0.250 in |
| Bore Tolerance | +0.001 in / -0.000 in |
| bore tolerance: | +.001 / -.000 in |
| bore type: | Finished |
| Category | Hardware, Fasteners, Accessories |
| Clearance Dia. (In.) | 1 in |
| Country of Origin | USA |
| Country of Origin (subject to change) | United States |
| coupling finish: | Black Anodized |

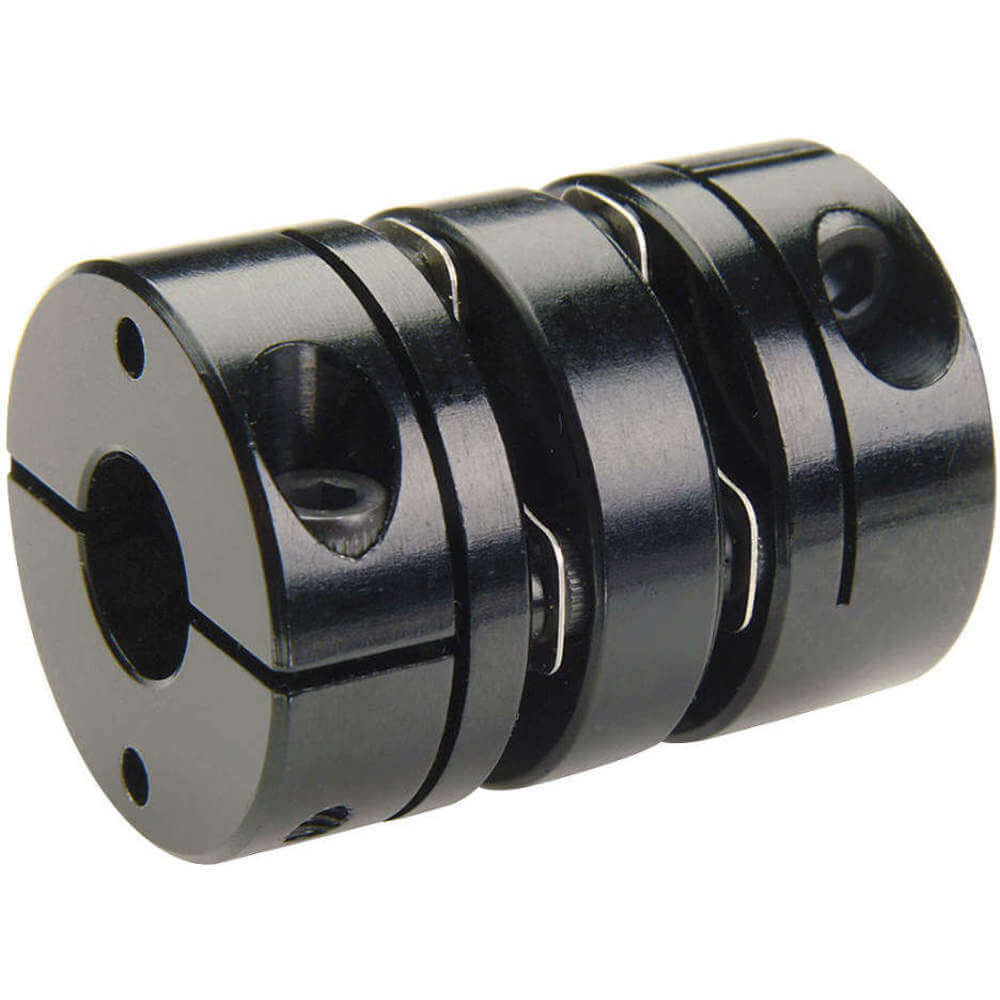

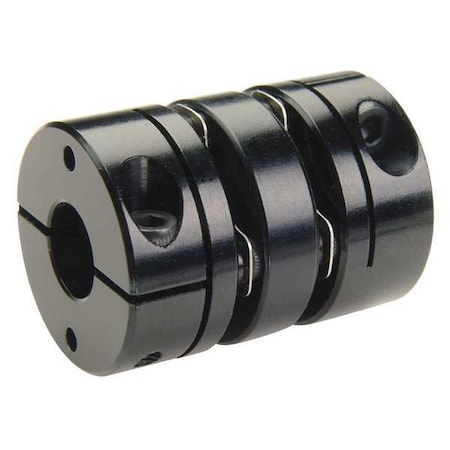

| Description | 1/4" X 1/4" DISC COUPLING |
| Digi-Key Part Number | 3188-DCD16-4-4-A-ND |
| disc coupling type: | Double Disc - Clamp Style without Keyway |
| disc material: | 302 Stainless Steel |
| Disc Type, Spring Material | Stainless Steel |
| Dynamic Torque Non-Reversing | 25 lb-in |
| dynamic torque non-reversing: | 25 in-lbs |
| Dynamic Torque Reversing | 12.5 lb-in |
| dynamic torque reversing: | 12.5 in-lbs |
| Finish | Anodized Aluminum |
| Finish Specification | Sulfuric Anodized MIL-A-8625 Type II, Class 2 and ASTM B580 Type B Black Anodize |
| Forged Clamp Screw, Screw Size, Screw Size (mm), screw thread size: | M3 |
| harmonization code: | 8483608000 |
| Hex Wrench Size | 2.5 mm |
| hub material: | 7075 or 2024 Aluminum |
| Hub Width (LH), hub width: | 0.467 in |
| Item, Item - Motion Control Couplings | Motion Control Coupling |
| Length through Bore | 0.688 in |
| Length through Bore (In.) | 0.688 |
| Length, Length (L), overall length: | 1.374 in |
| Manufacturer Product Number | DCD16-4-4-A |
| Manufacturer, Mfr | Ruland Manufacturing |
| Material | Aluminum Hub ; Aluminum Center Spacer |
| Material Specification | Hubs and Center Spacer: 2024-T351 Aluminum Bar |
| Material, Material - Couplings | Aluminum |
| Max. Angular Misalignment | 2 Degrees |
| Max. Axial Misalignment (In.) | +/-0.012 |
| Max. Parallel Misalignment (In.), maximum parallel misalignment:, Parallel Misalignment | 0.006 in |
| Max. RPM, Maximum Speed | 10,000 RPM |
| Max. Temp. | 200 Degrees F |
| Max. Temp. Range (F) | 200 |
| maximum angular misalignment: | 2.0 |
| maximum rpm: | 10000 RPM |
| Moment of Inertia | 0.0118 lb-in |
| Note 1 | Stainless steel hubs are available upon request. |
| Note 2 | Torque ratings are at maximum misalignment. |
| Note 3 | Performance ratings are for guidance only. The user must determine suitability for a particular application. |
| Note 4 | Torque ratings for the couplings are based on the physical limitations/failure point of the disc springs. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the disc springs. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the disc springs. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance. |
| Number of Screws | 2 ea |
| Outer Diameter | 1" (25.4mm) |
| Outer Diameter (OD), outside diameter: | 1.000 in |
| Outside Dia. | 1.0 in |
| Outside Dia. (In.) | 1.000 |
| Overall Length | 1.375 in |
| Overall Length (In.) | 1.375 |
| Package | Bag |
| Product Status | Active |
| rated temperature: | -10 to +200 |
| Rated Torque | 50 in-lb |
| Recommended Shaft Tolerance | +0.0000 in / -0.0005 in |
| Screw Finish, screw finish: | Black Oxide |
| Screw Material, screw material: | Alloy Steel |
| Screw Type | Cap Screw |
| Seating Torque | 2.1 Nm |
| Series, Size | - |
| series: | DCD-A |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| shaft penetration: | 0.687 in |
| Specifications | 1.000" (25.40mm) Outer Diameter x 1.374" (34.90mm) Length |
| Static Torque | 50 lb-in |
| Style | Double Disc Clamp, Double Disc Clamp Style |
| Tariff Code | 8483.60.8000 |
| Temperature | -40?F to 200?F (-40?C to 93?C) |
| Torque (In.-Lbs.) | 50 |
| torque capacity: | 50 in-lbs |
| Torsional Stiffness | 61 lb-in/Deg |
| Torsional Stiffness (Deg./In.-Lbs.) | 0.011 |
| torsional stiffness: | 61 in-lb/deg |
| Type | Disc Coupling |
| UNSPC | 31163008 |
| UPC | 634529081600 |
| UPC Code | 63452908160 |
| Weight (lbs) | 0.084900 |
| weight: | 0.069 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G1221701 | 82.0 | 82.0 | 1 | In Stock | 15 | Ruland | 0.09 | 82.0 @ Qty: 1+ |
| us.rs-online.com | 72348602 | 92.18 | 92.18 | 1 | In Stock | Ruland Manufacturing | 92.18 @ Qty: 1+ | |||
| Grainger | 2ACW2 | 102.0 | 102.0 | 1 | In Stock | 15 | RULAND MANUFACTURING | 102.0 @ Qty: 1+ | ||
 | motionindustries.com | 04804328 | 104.94 | 104.94 | 1 | In Stock | Ruland Manufacturing Co Inc | 104.94 @ Qty: 1+ | ||
 | Ruland | DCD16-4-4-A | 107.86 | 107.86 | 1 | In Stock | Ruland | 0.0849 | 107.86 @ Qty: 1+ | |
 | Digi-Key | 13601412 | 161.92 | 161.92 | 1 | 158 | Ruland Manufacturing | 161.92 @ Qty: 1+ | ||
 | Raptor Supplies | AB8XMC | 175.066398 | 175.066398 | 1 | In Stock | RULAND MANUFACTURING | 175.066398 @ Qty: 1+ |
