Ruland FCR10-4-4-A

B0060LRNYO

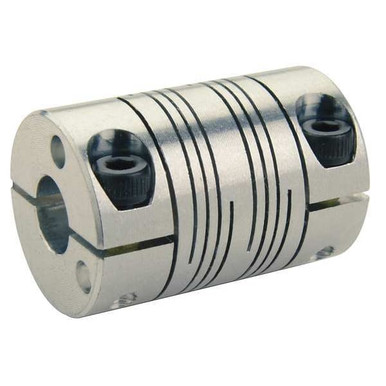

Ruland FCR10-4-4-A Clamping Beam Coupling, Polished Aluminum, Inch, 1/4" Bore A Diameter, 1/4" Bore B Diameter, 5/8" OD, 1" Length, 13 lb-in Nominal Torque

Ruland FCR10-4-4-A Clamping Beam Coupling, Polished Aluminum, Inch, 1/4" Bore A Diameter, 1/4" Bore B Diameter, 5/8" OD, 1" Length, 13 lb-in Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.005 in
B1 Max Shaft Penetration0.483 in
B2 Max Shaft Penetration0.483 in
Balanced DesignYes
Bore (B1)0.2500 in
Bore Dia.1/4" x 1/4", 1/4 in x 1.
Bore Diameter 11/4 in
Bore Diameter 21/4 in
Bore Tolerance+0.001 in / -0.000 in
BrandRULAND
Cap ScrewM2.5
Clearance Dia. (In.)0.796 in, 0.796
Clearance Diameter (C) .0.796 in
ColorSilver
Country of OriginUSA
Coupling Outside Diamet.5/8 in
Current Stock9
Different Bore SizesNo
Dynamic Torque Non-Reve.6.5 lb-in
Dynamic Torque Reversing3.25 lb-in
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size2.0 mm
International ShippingNo
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Lead TimeExpected to ship in 1-2.
Length (L)1.000 in
Length through Bore0.500", 0.5 in
Length through Bore (In.0.500
Length Through Bore 10.5 in
Length Through Bore 20.5 in
ManufacturerRuland Manufacturing
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.005
Max. Parallel Misalignm.0.008
Max. RPM6,000 RPM, 6,000
Max. Temp.225
Maximum Speed6,000 RPM
Moment of Inertia0.0013 lb-in
MpnFCR10-4-4-A
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)0.625 in
Outside Dia.0.625 in
Outside Dia. (In.)0.625
Overall Length1 in
Overall Length (In.)1.00
Parallel Misalignment0.008 in
Prop 65Warning: This product c.
Rated Torque13 in.-lbs., 13 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
Screw Thread SizeM2.5
Screw TypeCap Screw
Seating Torque1.21 Nm
Shaft Locking Type - Co.1 Piece Clamp
SKUZO-G0316154
Small Bore (B2)0.2500 in
Static Torque13 lb-in
Style6 Beam Clamp
SubCategoryPower Transmission
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torsional Stiffness0.360 Deg/lb-in
Torsional Stiffness (De.0.360
UNSPC31163003
UPC634529008331
Weight (lbs)0.022800
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRulandFCR10-4-4-A51.591In StockRuland0.022851.59 @ 1
thumbzoomZoroG031615455.05117Ruland0.0355.05 @ 1
grainger.caWWG2ACV160.793510561In StockRULAND MANUFACTURING0.0360.79351056 @ 1
thumbzoomsustainablesupply.comC167111561.091In StockRuland Manufacturing0.0361.09 @ 1
thumbzoomsimsupply.comZO-G031615465.2619RULAND65.26 @ 1
motionindustries.com0233668069.271In StockRuland Manufacturing Co Inc69.27 @ 1
thumbzoomRaptor SuppliesAB8XLR88.047181In StockRULAND MANUFACTURING88.04718 @ 1
