Ruland FSMR32-11-9-A

B016APPGFM

Ruland FSMR32-11-9-A 7075 Aluminum Beam Coupling, 6-Beam Set Screw Style, 11 mm x 9 mm Bores, 31.8 mm OD, 44.5 mm Length

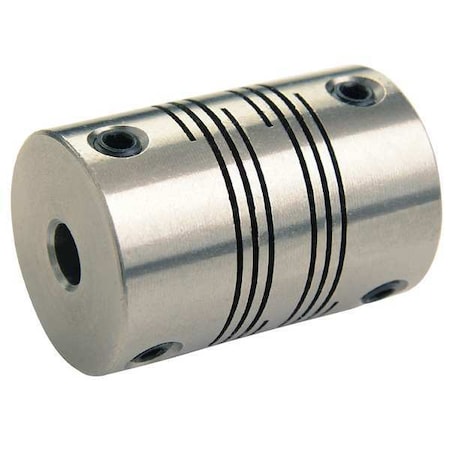

Ruland FSMR32-11-9-A 7075 Aluminum Beam Coupling, 6-Beam Set Screw Style, 11 mm x 9 mm Bores, 31.8 mm OD, 44.5 mm Lengthzoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.25 mm
B1 Max Shaft Penetration21.4 mm
B2 Max Shaft Penetration21.4 mm
Bore (B1)11 mm
Bore Dia.11mm x 9mm
Bore Tolerance+0.025 mm / -0.000 mm
Catalog PageN/A
Clearance Dia. (In.)0.796 in
Clearance Dia. (mm)20.22
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.2.83 Nm
Dynamic Torque Reversing1.41 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM6
Full Bearing Support Re.Yes
Hex Wrench Size3.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Item?30UV88
Length (L)44.5 mm
Length through Bore20.82 mm
Length through Bore (In.0.82
Length through Bore (mm)20.82
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees, 3 ?
Max. Axial Misalignment.+/-0.01
Max. Bore (mm)11 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 ?F, 225 Degrees F
Max. Temp. Range (F)225 Degrees
Maximum Speed6,000 RPM
Mfr. Model?FSMR32-11-9-A
Min. Bore (mm)9
Moment of Inertia11.885 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws4 ea
Outer Diameter (OD)31.8 mm
Outside Dia.31.8 mm
Outside Dia. (In.)1.25
Outside Dia. (mm)31.8
Overall Length44.5 mm
Overall Length (In.)1.75
Overall Length (mm)44.5
Parallel Misalignment0.38 mm
Rated Torque50 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM6
Screw Size (mm)M6
Screw TypeSet Screw
Seating Torque7.2 Nm
Setscrew Location2 (120?), 2 (120 Degree.
Shaft Locking Type - Co.1 Piece Set Screw
SizeFSMR32
Small Bore (B2)9 mm
Static Torque5.65 Nm
Style6-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)50
Torsional Stiffness0.63 Deg/Nm
Torsional Stiffness (De.0.071
UNSPC31163003
UNSPSC31163003
UPC634529010914
Weight (lbs)0.182000
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG815342463.01In Stock10Ruland0.1663.0 @ 1
thumbzoomcbtcompany.comFSMR32-11-9-A68.411In StockRULAND MANUFACTURING68.41 @ 1
thumbzoomRulandFSMR32-11-9-A78.491In StockRuland0.18278.49 @ 1
motionindustries.com04804895105.411In StockRuland Manufacturing Co Inc105.41 @ 1
Grainger30UV88115.671In StockRULAND MANUFACTURING115.67 @ 1
thumbzoomsustainablesupply.comC1645028132.691In StockRuland Manufacturing0.16132.69 @ 1
thumbzoomRaptor SuppliesAF9UTF161.55763651In StockRULAND MANUFACTURING161.5576365 @ 1
