Ruland MBC33-15-14-A

B016APPL8O

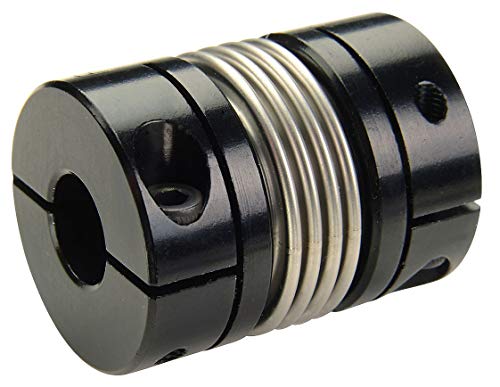

Ruland MBC33-15-14-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Clamp Style, 15 mm x 14 mm Bores, 33.3 mm OD, 42.9 mm Length

Ruland MBC33-15-14-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Clamp Style, 15 mm x 14 mm Bores, 33.3 mm OD, 42.9 mm Lengthzoom

Attributes

Key Value
Angular Misalignment1.5?
Axial Motion0.40 mm
axial motion:0.40 mm
B1 Max Shaft Penetration20.4 mm
B2 Max Shaft Penetration20.4 mm
Balanced DesignYes
Bellows Attachment Meth.Epoxy
bellows material:321 Stainless Steel
Bore (B1)15 mm
bore - side 1:15 mm
bore - side 2:14 mm
Bore Dia.15mm x 14mm
Bore Tolerance+0.03 mm / -0.00 mm
bore tolerance:+.03 / -.00 mm
Clearance Dia. (In.)1.313 in
Clearance Dia. (mm)33.3
Country of OriginUSA
Country of Origin (subj.United States
coupling style:Clamp-On
Dynamic Torque Non-Reve.6.80 Nm
dynamic torque non-reve.6.80 N-m
Dynamic Torque Reversing3.40 Nm
dynamic torque reversin.3.40 N-m
FinishBlack Anodized
Finish SpecificationSulfuric Anodized MIL-A.
Forged Clamp ScrewM3
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.5 mm
hub material:7075 or 2024 Aluminum
Hub Width (LH)15.00 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)43.2 mm
Length through Bore20.5 mm
Length through Bore (In.0.811
Length through Bore (mm)20.5
length through bore:41.0 mm
Length Tolerance+/- 0.76 mm
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material SpecificationHubs: 2024-T351 Aluminu.
Max. Angular Misalignme.1.5 Degrees
Max. Axial Misalignment.+/-0.016
Max. Bore (mm)15 mm
Max. Parallel Misalignm.0.006 in
Max. RPM10,000 RPM
Max. Temp.200 Degrees F
Max. Temp. Range (F)200 Degrees
maximum angular misalig.1.50
maximum parallel misali.0.15 mm
maximum rpm:10000 rpm
Maximum Speed10,000 RPM
Min. Bore (mm)14.0
Moment of Inertia10.656 x10
Note 1Stainless steel hubs ar.
Note 2Torque ratings are at m.
Note 3Performance ratings are.
Note 4Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)33.3 mm
Outside Dia.33.3 mm
Outside Dia. (In.)1.313
Outside Dia. (mm)33.3
outside diameter:33.3 mm
Overall Length42.9 mm
Overall Length (In.)1.623
Overall Length (mm)41.00
overall length:41 mm
Parallel Misalignment0.15 mm
rated temperature:-40 to 200
Rated Torque120 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
screw thread size:M3
Screw TypeCap Screw
Seating Torque2.1 Nm
series:MBC
Shaft Locking Type - Co.1 Piece Clamp
shaft penetration:20.5 mm
SizeMBC33
Small Bore (B2)14 mm
Static Torque13.6 Nm
static torque:13.6 N-m
StyleBellows Clamp
Tariff Code8483.60.8000
Temperature-40?F to 200?F (-40?C t.
Torque (In.-Lbs.)120
Torsional Stiffness45 Nm/Deg
Torsional Stiffness (De.400
torsional stiffness:45 N-m/deg
UNSPC31163018
UPC634529063941
Weight (lbs)0.139400
weight:0.165 lb
Zero-Backlash?Yes
