Ruland MBS33-15-12-A

mpnMBS33-15-12-A
brandname: RULAND MANUFACTURING
manufacturername: RULAND MANUFACTURING

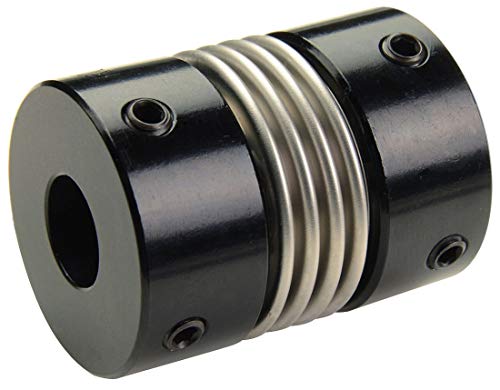

Ruland MBS33-15-12-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Set Screw Style, 15 mm x 12 mm Bores, 33.3 mm OD, 42.9 mm Length

Brand: Ruland
PartNumber: MBS33-15-12-A
Model: MBS33-15-12-A
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ruland Manufacturing Co., Inc.
Label: Ruland Manufacturing Co., Inc.

Attributes

Key	Value
Angular Misalignment	1.5?
Axial Motion	0.40 mm
axial motion:	0.40 mm
B1 Max Shaft Penetration	20.4 mm
B2 Max Shaft Penetration	20.4 mm
Balanced Design	Yes
Bellows Attachment Meth.	Epoxy
bellows material:	321 Stainless Steel
Bore (B1)	15 mm
bore - side 1:	15 mm
bore - side 2:	12 mm
Bore Tolerance	+0.03 mm / -0.00 mm
bore tolerance:	+.03 / -.00 mm
Category	Hardware, Fasteners, Ac.
Country of Origin	USA
coupling style:	Set Screw
Dynamic Torque Non-Reve.	6.80 Nm
dynamic torque non-reve.	6.80 N-m
Dynamic Torque Reversing	3.40 Nm
dynamic torque reversin.	3.40 N-m
Finish Specification	Sulfuric Anodized MIL-A.
Forged Set Screw	M4
Full Bearing Support Re.	Yes
harmonization code:	8483608000
Hex Wrench Size	2.0 mm
hub material:	7075 or 2024 Aluminum
Hub Width (LH)	15.00 mm
Length (L)	42.9 mm
length through bore:	41.0 mm
Length Tolerance	+/- 0.76 mm
Manufacturer	Ruland Manufacturing
Material Specification	Hubs: 2024-T351 Aluminu.
maximum angular misalig.	1.50
maximum parallel misali.	0.15 mm
maximum rpm:	10000 rpm
Maximum Speed	10,000 RPM
Mfr	Ruland Manufacturing
Note 1	This product has been d.
Note 2	Torque ratings are at m.
Note 3	Performance ratings are.
Note 4	Torque ratings for the .
Number of Screws	4 ea
Outer Diameter (OD)	33.3 mm
outside diameter:	33.3 mm
overall length:	41 mm
Package	Bag
Parallel Misalignment	0.15 mm
Part Status	Last Time Buy
rated temperature:	-40 to 200
Recommended Shaft Toler.	+0.000 mm / -0.013 mm
Screw Finish	Black Oxide
Screw Material	Alloy Steel
screw thread size:	M4
Seating Torque	2.2 Nm
Series	-
series:	MBS
shaft penetration:	20.5 mm
Small Bore (B2)	12 mm
Specifications	1.313" (33.35mm) Outer .
Static Torque	13.6 Nm
static torque:	13.6 N-m
Tariff Code	8483.60.8000
Temperature	-40?F to 200?F (-40?C t.
Torsional Stiffness	45 Nm/Deg
torsional stiffness:	45 N-m/deg
Type	Bellows Coupling
UNSPC	31163018
UPC	634529064863
Weight (lbs)	0.151700
weight:	0.165 lb
Zero-Backlash?	Yes

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
motionindustries.com	02336997	120.5	1	In Stock		Ruland Manufacturing Co Inc		120.5 @ 1
AmazonTP	B016APPS5A	158.88	1	In Stock	5	Ruland Manufacturing Co., Inc.		158.88 @ 1
Ruland	MBS33-15-12-A	172.12	1	In Stock		Ruland	0.1517	172.12 @ 1
Grainger	30VG54	173.25	1	In Stock	15	RULAND MANUFACTURING		173.25 @ 1
Digi-Key	13613347	174.0	1	In Stock		Ruland Manufacturing		174.0 @ 1
sustainablesupply.com	C1651094	198.46	1	In Stock		Ruland Manufacturing	0.17	198.46 @ 1
