Ruland MCLX-5-5-A

B0060M22HQ

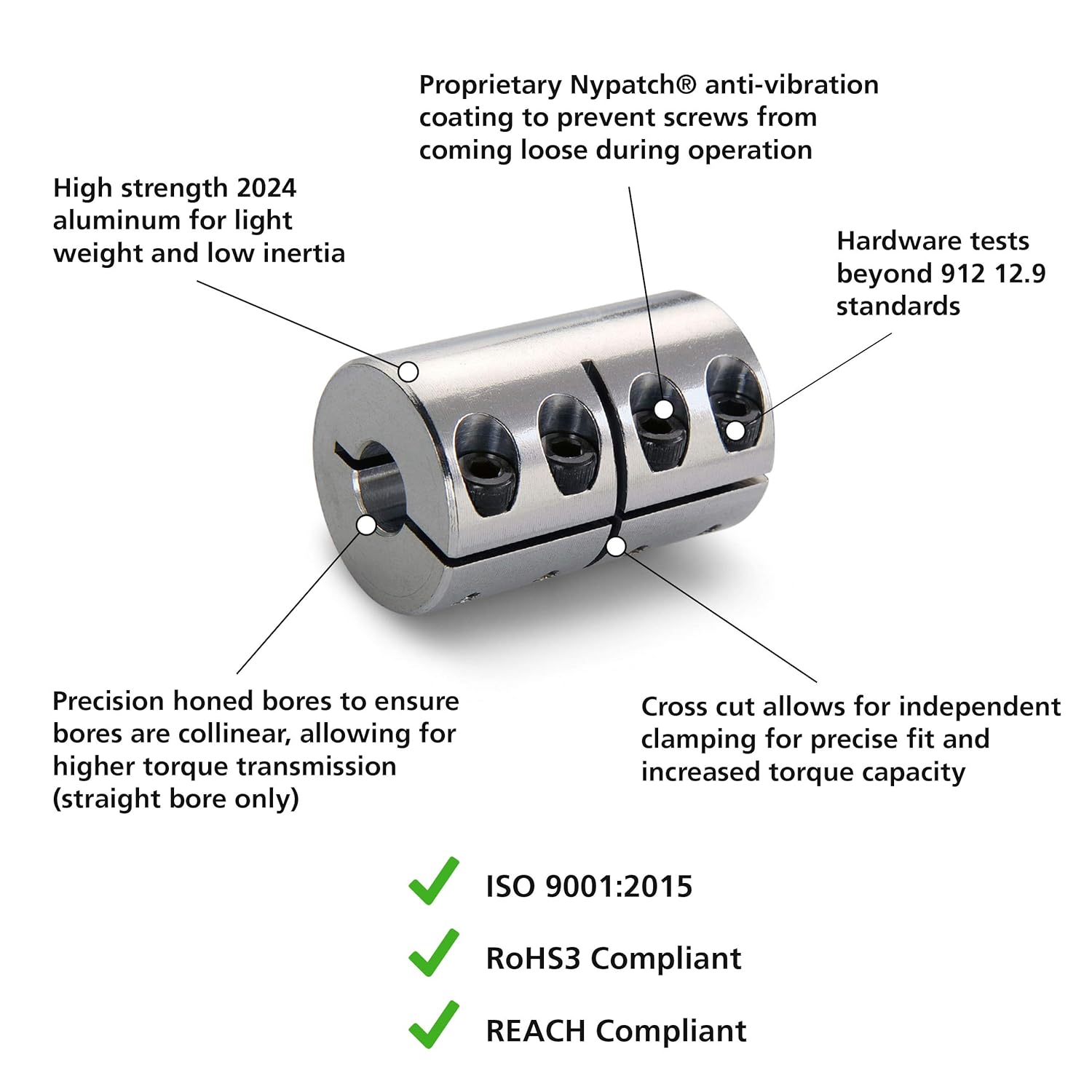

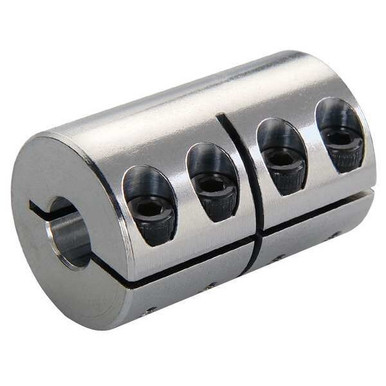

Ruland MCLX-5-5-A One-Piece Clamping Rigid Coupling, Aluminum, Metric, 5mm Bore A Diameter, 5mm Bore B Diameter, 15mm OD, 22mm Length

Ruland MCLX-5-5-A One-Piece Clamping Rigid Coupling, Aluminum, Metric, 5mm Bore A Diameter, 5mm Bore B Diameter, 15mm OD, 22mm Lengthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration11.0 mm
B2 Max Shaft Penetration11.0 mm
Bore (B1)5 mm
Bore Dia.5 mm
Bore Tolerance+0.050 mm / +0.012 mm
BrandRULAND
Clearance Dia.15.0 mm
Clearance Dia. (mm)15.00
Clearance Diameter (C) .15.0 mm
Country of OriginUSA
Country of Origin (subj.United States
Current Stock4
DesignFour Vibration Resistan.
FinishBright
Finish SpecificationBright, No Plating
Forged Clamp ScrewM2
Full Bearing Support Re.No
Hex Wrench Size1.5 mm
International ShippingNo
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)22 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
Material2024 Aluminum
Material - Couplings2024 Aluminum
Material Specification2024-T351 Aluminum Bar
Max. Torque60 in-lb
Max. Torque (In.-Lbs.)60
Maximum Speed4,000 RPM
Moment of Inertia2.885 x 10
MpnMCLX-5-5-A
Note 1Performance ratings are.
Number of Screws4 ea
Outer Diameter (OD)15 mm
Outside Dia.15 mm
Overall Length22 mm
ProvidesExtra Holding Power for.
Rated Torque2.60 Nm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)4.6 mm
Screw MaterialAlloy Steel
Screw SizeM2
Screw Size (mm)M2
Seating Torque0.6 Nm
Shaft Locking Type - Co.1 Piece Clamp
SKUZO-G3396057
Small Bore (B2)5 mm
SubCategoryPower Transmission
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
TypeOne Piece Clamp Type, W.
UNSPC31163009
UPC634529072691
UPC Code63452907269
Weight (lbs)0.020200
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG339605728.01In StockRuland0.0328.0 @ 1
us.rs-online.com7217721530.51In StockRuland Manufacturing30.5 @ 1
thumbzoomcbtcompany.comMCLX-5-5-A30.611In StockRULAND MANUFACTURING30.61 @ 1
thumbzoomRulandMCLX-5-5-A35.11In StockRuland0.020235.1 @ 1
RS Delivers435-115038.868154Ruland38.868 @ 1
Grainger2AND639.681In StockRULAND MANUFACTURING39.68 @ 1
thumbzoomsimsupply.comZO-G339605741.4614RULAND41.46 @ 1
thumbzoomAmazonB0060M22HQ45.411In StockRuland45.41 @ 1
AmazonTPB0060M22HQ48.021In Stock15Ruland Manufacturing48.02 @ 1
thumbzoomRaptor SuppliesAB8ZVV67.4208991In StockRULAND MANUFACTURING67.420899 @ 1
