Ruland MOST25-7-A

B016APQ25U

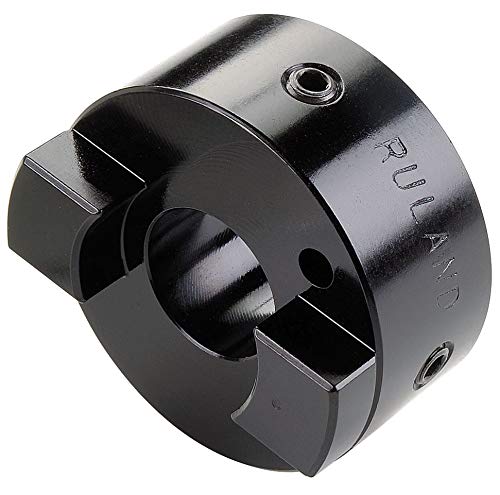

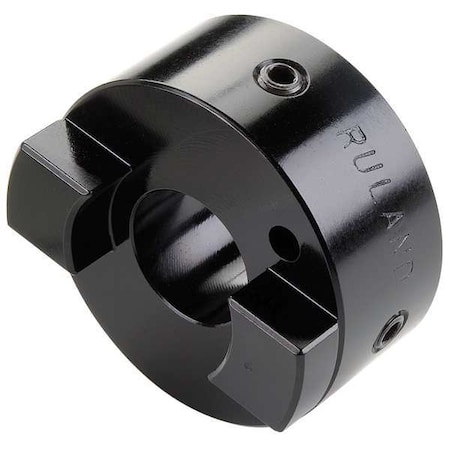

Ruland MOST25-7-A 2024 or 7075 Aluminum Oldham Coupling Hub, Set Screw Style, 7 mm Bore, 25.4 mm OD

Ruland MOST25-7-A 2024 or 7075 Aluminum Oldham Coupling Hub, Set Screw Style, 7 mm Bore, 25.4 mm ODzoom

Attributes

Key Value
Assembled Coupling Leng.28.6 mm
Bore (B1)7 mm
Bore Dia.7 mm
Clearance Dia. (In.)1 in
Clearance Dia. (mm)25.4
Country of Origin (subj.United States
FinishBlack Anodized
ItemMotion Control Coupling.
Item - Oldham Coupling .Oldham Coupling Hub
Length (L)1.189 in (30.2 mm)
Length through Bore (In.0.467 in
Length through Bore (mm)11.9
Material - HubsAluminum
Max. RPM4,500 RPM
Max. Temp. Range (F)Acetal Disk 150 Degrees.
Outer Diameter (OD)1.000 in (25.4 mm)
Outside Dia.25.4 mm
Overall Length (In.)0.39 in
Overall Length (mm)9.9
Screw Size (mm)M4
Screw TypeSet Screw
Setscrew Location2 (90 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizeMOST25
Small Bore (B2)0.2500 in
With Keyway / Without K.Without Keyway

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG968617113.341In Stock15Ruland0.0813.34 @ 1
thumbzoomcbtcompany.comMOST25-7-A15.941In StockRULAND MANUFACTURING15.94 @ 1
thumbzoomRulandMOST25-7-A18.261In StockRuland18.26 @ 1
thumbzoomsustainablesupply.comC165119624.291In StockRuland Manufacturing0.0824.29 @ 1
motionindustries.com0626652925.01In StockRuland Manufacturing Co Inc25.0 @ 1
thumbzoomRaptor SuppliesAF9WRY32.0232511In StockRULAND MANUFACTURING32.023251 @ 1
