Ruland MSPK-40-F

B016APQ3OU

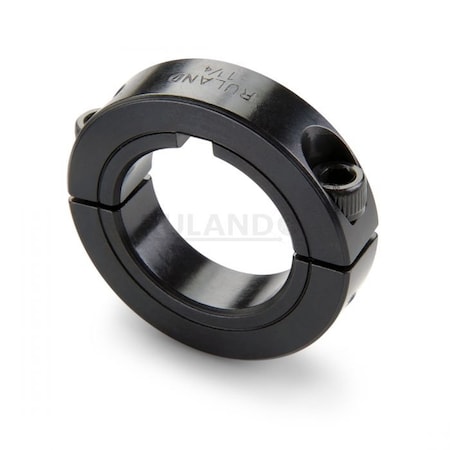

Ruland MSPK-40-F 1215 Lead-Free Steel Shaft Collar, Two Piece with Keyway, 15 mm Width, 60 mm OD, 40 mm Bore, 12 mm Keyway

Ruland MSPK-40-F 1215 Lead-Free Steel Shaft Collar, Two Piece with Keyway, 15 mm Width, 60 mm OD, 40 mm Bore, 12 mm Keywayzoom

Attributes

Key Value
Bore (B)40 mm
Bore Diameter40 mm
Bore Thread SizeNot Applicable
Bore Tolerance+0.050/+0.012 mm, +0.05.
Bore WidthNot Applicable
CategoryHardware, Fasteners, Ac.
Clearance Diameter65.6 mm
Clearance Diameter (C) .65.6 mm
Collar Outside Diameter60 mm
Collar Width15 mm
Component Mount TypeNot Applicable
Country of OriginUSA
Description40 MM STEEL SHAFT COLLAR
Digi-Key Part Number3188-MSPK-40-F-ND
Distance Across FlatsNot Applicable
Finish SpecificationHot Process Black Oxide.
For Shaft Diameter40 mm
Forged Clamp ScrewM6 x 18
Hex Wrench Size5.0 mm
Inside Height to FlatNot Applicable
ItemKeyed Shaft Collar
Keyway (K)12 mm
Keyway Depth3.5 mm
Keyway Width12 mm
Lever HeightNot Applicable
Lever LengthNot Applicable
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MSPK-40-F
Material Specification1215 Carbon Steel Bar
Maximum Operating Tempe.350 Degrees F
MfrRuland Manufacturing
Mount Hole Thread SizeNot Applicable
Note 1Performance ratings are.
Number of Screws2 ea
Outer Diameter (OD)60 mm
PackageBag
Product StatusActive
Recommended Gap1.59 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Length18 mm
Screw Location (R)24.99 mm
Screw MaterialAlloy Steel
Screw Seating Torque16 N-m
Screw Thread SizeM6x18
Seating Torque16 Nm
Series-
Specifications2.362" (60.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
UNSPC31162811
UPC634529216613
Weight (lbs)0.360700
Width (W)15 mm
Width Tolerance+0.076 mm / -0.254 mm, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG60867505826.991In StockRuland0.3626.99 @ 1
us.rs-online.com7262321230.611In StockRuland Manufacturing30.61 @ 1
thumbzoomRulandMSPK-40-F35.791In StockRuland0.360735.79 @ 1
thumbzoomDigi-Key1359849764.16110Ruland Manufacturing64.16 @ 1
