Ruland PSR16-6-5-A

B007IAMO3Q

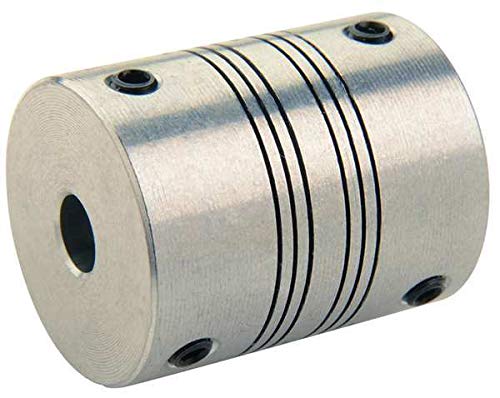

Coupling, 4 Beam, Bore 3/8x5/16 in

Coupling, 4 Beam, Bore 3/8x5/16 inzoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.010 in
B1 Max Shaft Penetration0.579 in
B2 Max Shaft Penetration0.579 in
Bore (B1)0.3750 in
Bore Dia.3/8 in x 5/16 in
Bore Tolerance+0.001 in / -0.000 in
Clearance Dia. (In.)1.0 in
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.15 lb-in
Dynamic Torque Reversing7.5 lb-in
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM4
Full Bearing Support Re.Yes
Hex Wrench Size2.0 mm
Hub Dia.1 in
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)1.250 in
Length through Bore0.625 in
Length through Bore (In.0.625
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.010
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225
Maximum Speed6,000 RPM
Moment of Inertia0.0116 lb-in
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws4 ea
Outer Diameter (OD)1.000 in
Outside Dia.1.0 in
Outside Dia. (In.)1.000
Overall Length1.25 in
Overall Length (In.)1.25
Parallel Misalignment0.015 in
Rated Torque30 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM4
Screw Size (mm)M4
Screw TypeSet Screw
Seating Torque1.76 Nm
Shaft Locking Type - Co.1 Piece Set Screw
Size-
Small Bore (B2)0.3125 in
Static Torque30 lb-in
Style4 Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)30
Torsional Stiffness0.200 Deg/lb-in
Torsional Stiffness (De.0.2
UNSPC31163003
UPC634529034071
Weight (lbs)0.079100
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG138299743.01In StockRuland0.1243.0 @ 1
thumbzoomRulandPSR16-6-5-A48.471In StockRuland0.079148.47 @ 1
motionindustries.com0233798865.121In StockRuland Manufacturing Co Inc65.12 @ 1
thumbzoomRaptor SuppliesAB8ZKQ82.460431In StockRULAND MANUFACTURING82.46043 @ 1
