mpn:
BC32-16-12-A
brand:
Ruland Manufacturing Co Inc
manufacturer:
Ruland Manufacturing Co Inc
MPN:
BC32-16-12-A
Weight:
0.44
Weight:
0.44 LB
Preferred Price:
260.19
Price:
260.19
Min Simple Price:
147.0
Absolute Min Price:
208.74
Min Price:
208.74
Dimensions:
[6.0, 3.0, 3.0]
qty:
1
simpleSku:
NTQ3MQ:::BC32-16-12-A
sku:
NTQ3MQ::YL:BC32-16-12-A@y0
condition:
11
seller:
Zoro
amzMan:
generic
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Angular Misalignment2.0?
Axial Motion0.020 in
B1 Max Shaft Penetration, B2 Max Shaft Penetration1.099 in
Balanced Design, Full Bearing Support Required?, Zero-Backlash?Yes
Bellows Attachment MethodEpoxy
Bore (B1)1.0000 in
Bore Dia.1 in x 3/4 in
Bore Tolerance+0.001 in / -0.000 in
Clearance Dia. (In.)2 in
Country of OriginUSA
Country of Origin (subject to change)United States
Dynamic Torque Non-Reversing200 lb-in
Dynamic Torque Reversing100 lb-in
FinishAnodized Aluminum
Finish SpecificationSulfuric Anodized MIL-A-8625 Type II, Class 2 and ASTM B580 Type B Black Anodize
Forged Clamp Screw, Screw Size, Screw Size (mm)M5
Hex Wrench Size4.0 mm
Hub Width (LH)0.810 in
Item, Item - Motion Control CouplingsMotion Control Coupling
Length (L)2.413 in
Length through Bore1.157 in
Length through Bore (In.)1.157
Length Tolerance+/- 0.030 in
ManufacturerRuland Manufacturing
Material SpecificationHubs: 2024-T351 Aluminum Bar
Material, Material - CouplingsAluminum
Max. Angular Misalignment2 Degrees
Max. Axial Misalignment (In.)+/-0.020
Max. Parallel Misalignment (In.)0.01 in
Max. RPM, Maximum Speed10,000 RPM
Max. Temp.200 Degrees F
Max. Temp. Range (F)200
Moment of Inertia0.270755 lb-in
Note 1Stainless steel hubs are available upon request.
Note 2Torque ratings are at maximum misalignment.
Note 3Performance ratings are for guidance only. The user must determine suitability for a particular application.
Note 4Torque ratings for the couplings are based on the physical limitations/failure point of the metal bellows. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the metal bellows. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the metal bellows. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.
Number of Screws2 ea
Outer Diameter (OD)2.000 in
Outside Dia.2.0 in
Outside Dia. (In.)2.000
Overall Length2.315 in
Overall Length (In.)2.315
Parallel Misalignment0.010 in
Rated Torque400 in-lb
Recommended Shaft Tolerance+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw TypeCap Screw
Seating Torque9.5 Nm
Shaft Locking Type - Couplings1 Piece Clamp
Size-
Small Bore (B2)0.7500 in
Static Torque400 lb-in
StyleBellows Clamp
Tariff Code8483.60.8000
Temperature-40?F to 200?F (-40?C to 93?C)
Torque (In.-Lbs.)400
Torsional Stiffness950 lb-in/Deg
Torsional Stiffness (Deg./In.-Lbs.)0.001
UNSPC31163018
UPC634529062043
UPC Code63452906204
Weight (lbs)0.435300

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG1343693147.0147.01In Stock15Ruland0.51147.0 @ Qty: 1+
thumbzoomRulandBC32-16-12-A180.09180.091In StockRuland0.4353180.09 @ Qty: 1+
us.rs-online.com72181453201.96201.961In StockRuland Manufacturing201.96 @ Qty: 1+
motionindustries.com02336509246.34246.341In StockRuland Manufacturing Co Inc246.34 @ Qty: 1+
thumbzoomRaptor SuppliesAB9BJW299.539188299.5391881In StockRULAND MANUFACTURING299.539188 @ Qty: 1+
B09GV2BYYL
Generic

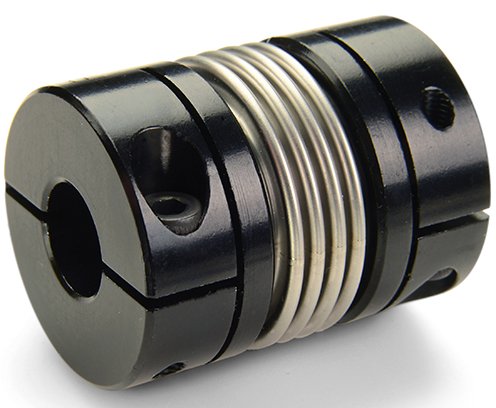

Ruland Manufacturing Co Inc BC32-16-12-A - BC32-16-12-A Bellows Shaft Coupling, 1.000" Bore x 0.750" Bore

Ruland Manufacturing Co Inc BC32-16-12-A - BC32-16-12-A Bellows Shaft Coupling, 1.000" Bore x 0.750" Borezoom
