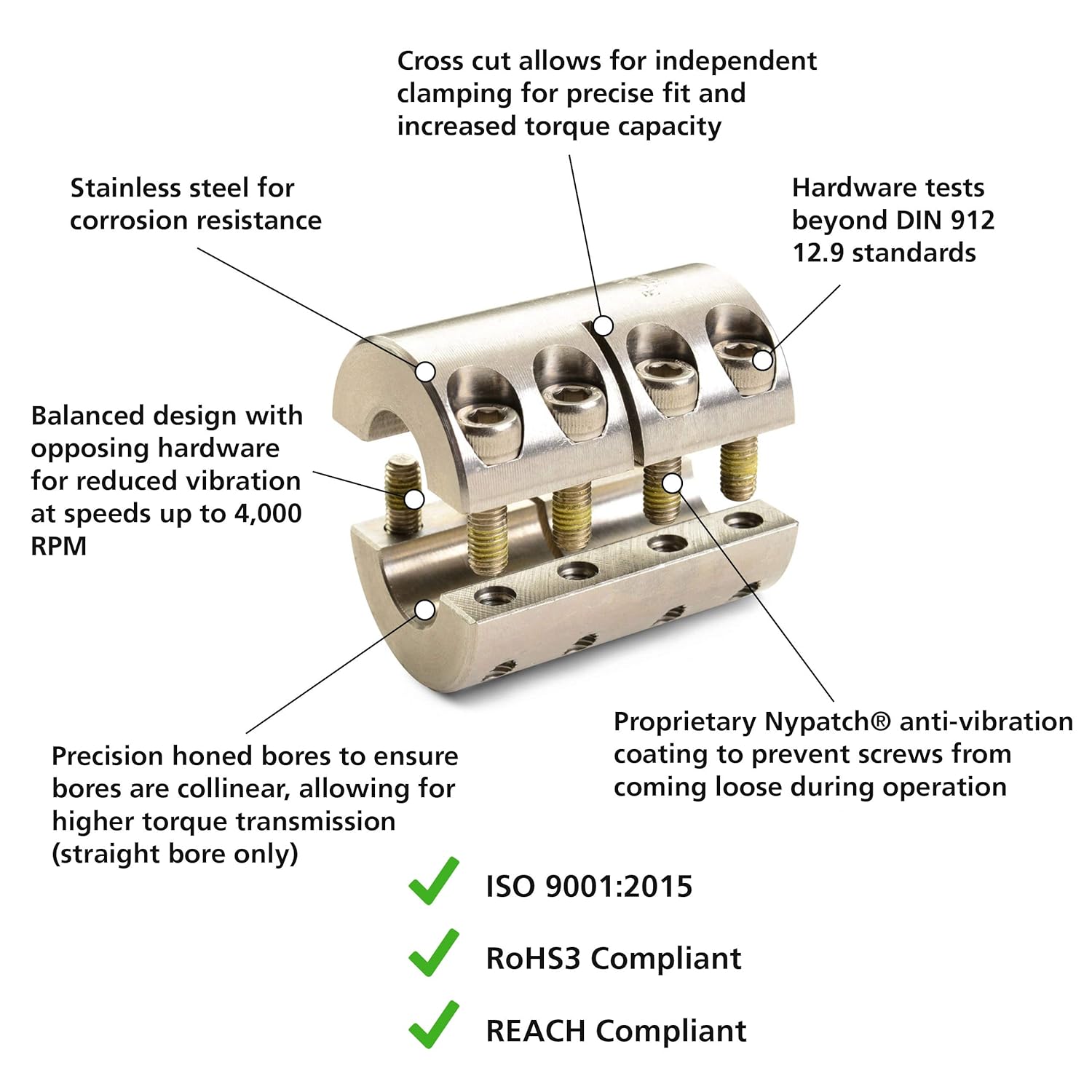

Ruland Manufacturing Co Inc MSPX-35-35-SS - Clamp-On Rigid Coupling - MSPX Series, Bright, 303 Stainless Steel, Bore - Side 1: 35 mm, Bore - Side 2: 35 mm

Ruland Manufacturing Co Inc MSPX-35-35-SS - Clamp-On Rigid Coupling - MSPX Series, Bright, 303 Stainless Steel, Bore - Side 1: 35 mm, Bore - Side 2: 35 mmzoom

Attributes

Key Value
angular misalignment:0
ApplicationFor Applications where .
axial motion:0.00 mm
B1 Max Shaft Penetration47.5 mm
B2 Max Shaft Penetration47.5 mm
Balanced DesignYes
Bore (B1)35 mm
bore - side 1:35 mm
bore - side 2:35 mm
Bore Dia.35 mm
Bore Tolerance+0.050 mm / +0.012 mm
bore tolerance:+.050 / +.012 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia.74.7 mm
Clearance Dia. (mm)74.70
Clearance Diameter (C) .74.7 mm
Country of OriginUSA
Country of Origin (subj.United States
coupling material:303 Stainless Steel
coupling type:Two-Piece Clamp Without.
DesignFour Vibration Resistan.
FinishBright
finish / coating:Bright
Finish SpecificationBright, No Plating
Forged Clamp ScrewM8
Full Bearing Support Re.No
harmonization code:8483608000
Hex Wrench Size6.0 mm
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)95 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Torque7,800 in-lb
Max. Torque (In.-Lbs.)7800
maximum rpm:4000 RPM
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia1.254 x 10
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)67 mm
Outside Dia.67 mm
outside diameter:67 mm
Overall Length95 mm
overall length:95 mm
PackageBag
parallel misalignment:0.00 mm
Precision Honed Bores?Yes
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque330 Nm
Recommended Gap2.38 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBright
screw finish:Bright
Screw Location (R)26.7 mm
screw location:26.7 mm
Screw Material18-8 300 Series Stainle.
Screw SizeM8
Screw Size (mm)M8
screw thread size:M8
screw type / material:18-8 300 Series Stainle.
Seating Torque23 Nm
Series-
series:MSPX
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)35 mm
Specifications2.638" (67.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
temperature rating:-40 to +350
TypeRigid Coupling, Two Pie.
UNSPC31163009
UPC634529018316
Weight (lbs)3.953500
weight:4.22 lbs
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0654141437.01In Stock10Ruland4.05437.0 @ 1
thumbzoomcbtcompany.comMSPX-35-35-SS489.181In StockRULAND MANUFACTURING489.18 @ 1
thumbzoomAmazonB0060M9FNA497.321In StockRuland497.32 @ 1
thumbzoommotionindustries.com02337549512.671In StockRuland Manufacturing Co Inc512.67 @ 1
thumbzoomRulandMSPX-35-35-SS561.241In StockRuland3.9535561.24 @ 1
Digi-Key13600755751.4212Ruland Manufacturing751.42 @ 1
thumbzoomRaptor SuppliesAB9ABY966.3289741In StockRULAND MANUFACTURING966.328974 @ 1
