Attributes
| Key ^ | Value |
|---|---|
| Angular Misalignment | 3.0? |
| Axial Motion | 0.25 mm |
| B1 Max Shaft Penetration, B2 Max Shaft Penetration | 18.2 mm |
| Balanced Design, Full Bearing Support Required?, Zero-Backlash? | Yes |
| Base Product Number, Size | MWC30 |
| Bore (B1), bore - side 1:, Max. Bore (mm) | 10 mm |
| bore - side 2:, Small Bore (B2) | 8 mm |
| Bore Dia. | 10mm x 8mm |
| Bore Tolerance | +0.025 mm / -0.000 mm |
| bore tolerance: | +.025 / -.000 mm |
| Cap Screw, Screw Size, Screw Size (mm), screw thread size: | M4 |
| Category | Hardware, Fasteners, Accessories |
| Clearance Dia. (In.) | 0.591 in |
| Clearance Dia. (mm) | 15 |
| Country of Origin | USA |
| Country of Origin (subject to change) | United States |
| Dynamic Torque Non-Reversing | 3.45 Nm |
| Dynamic Torque Reversing | 1.73 Nm |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| harmonization code: | 8483608000 |
| Hex Wrench Size | 3.0 mm |

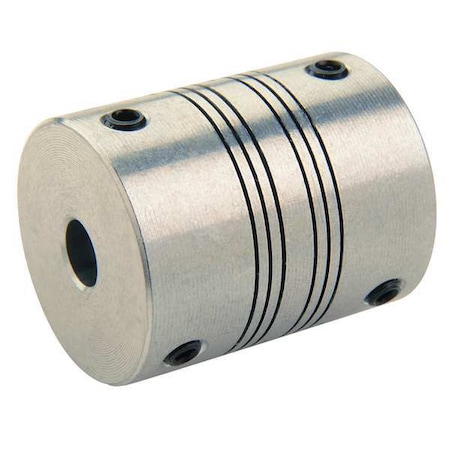

| Item, Item - Motion Control Couplings | Motion Control Coupling |
| Length (L) | 38.0 mm |
| Length through Bore | 17.65 mm |
| Length through Bore (In.) | 0.695 |
| Length through Bore (mm) | 17.65 |
| Manufacturer, Mfr | Ruland Manufacturing |
| Material Specification | 7075-T651 Extruded and Drawn Aluminum Bar |
| Material, Material - Couplings | Aluminum |
| material: | 7075 Aluminum |
| Max. Angular Misalignment | 3 Degrees |
| Max. Axial Misalignment (In.) | +/-0.015 |
| Max. Parallel Misalignment (In.) | 0.01 in |
| Max. RPM, Maximum Speed | 6,000 RPM |
| Max. Temp. | 225 Degrees F |
| Max. Temp. Range (F) | 225 Degrees |
| maximum angular misalignment: | 3 |
| maximum parallel misalignment:, Parallel Misalignment | 0.38 mm |
| maximum rpm: | 6000 rpm |
| Min. Bore (mm) | 8 |
| Moment of Inertia | 7.958 x10 |
| Note 1 | Torque ratings are at maximum misalignment. |
| Note 2 | Performance ratings are for guidance only. The user must determine suitability for a particular application. |
| Note 3 | Torque ratings for the couplings are based on the physical limitations/failure point of the machined beams. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the machined beams. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the machined beams. Please consult technical support for more assistance. |
| number of beams: | Four Beam |
| Number of Screws | 2 ea |
| operating temperature: | -40 to +225 |
| Outer Diameter (OD) | 30.0 mm |
| Outside Dia. (In.) | 1.181 |
| Outside Dia. (mm) | 30 |
| Outside Dia., outside diameter: | 30 mm |
| Overall Length (In.) | 1.496 |
| Overall Length (mm) | 38 |
| Overall Length, overall length: | 38 mm |
| Package | Bag |
| Product Status | Active |
| Rated Torque | 61 in-lb |
| Recommended Shaft Tolerance | +0.000 mm / -0.013 mm |
| screw clamp type: | Clamp Type |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Screw Type | Cap Screw |
| Seating Torque | 4.6 Nm |
| Series | - |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| Specifications | 1.181" (30.00mm) Outer Diameter x 1.496" (38.00mm) Length |
| Static Torque | 6.90 Nm |
| Style | 4-Beam Clamp |
| Tariff Code | 8483.60.8000 |
| Temperature | -40?F to 225?F (-40?C to 107?C) |
| Torque (In.-Lbs.) | 61 |
| Torsional Stiffness | 0.71 Deg/Nm |
| Torsional Stiffness (Deg./In.-Lbs.) | 0.08 |
| torsional stiffness: | 0.71 N-m/deg |
| Type | Beam Coupling |
| UNSPC | 31163003 |
| UPC | 634529055564 |
| Weight (lbs) | 0.131000 |
| weight: | 0.17 lb |
