mpn:
manufacturer:
MPN:
Weight:
0.0075
Weight:
0.0075 LB
Preferred Price:
47.06
Price:
47.06
Min Simple Price:
23.0
Absolute Min Price:
32.65
Min Price:
32.65
Dimensions:
[5.0, 3.0, 1.0]
qty:
1
simpleSku:
NTQ3MQ:::MWCL-10-F
sku:
NTQ3MQ::T6:MWCL-10-F@y0
condition:
11
seller:
Zoro
amzMan:
generic
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Base Product Number | MWCL |
| Bore (B1), Bore Dia., Small Bore (B2) | 10 mm |
| Bore Tolerance | +0.050 mm / +0.012 mm |
| Bore Type - Collars | Plain Bore |
| Category | Hardware, Fasteners, Accessories |
| Clearance Dia., Clearance Diameter (C) MAX | 26.3 mm |
| Collar Style | Clamp |
| Country of Origin | USA |
| Country of Origin (subject to change) | United States |

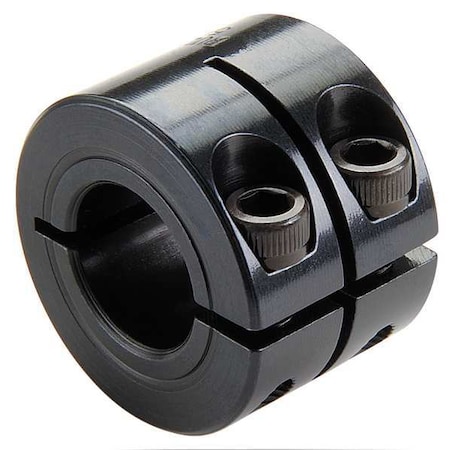

| Description | 10 MM STEEL SHAFT COLLAR |
| Digi-Key Part Number | 3188-MWCL-10-F-ND |
| Dimension Type, System of Measurement | Metric |
| Finish Specification | Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw, Screw Size | M3 |
| Hex Wrench Size | 2.5 mm |
| Item, Item - Shaft Collars, Type | Shaft Collar |
| Manufacturer Product Number | MWCL-10-F |
| Manufacturer, Mfr | Ruland Manufacturing |
| Material Specification | 1215 Carbon Steel Bar |
| Material, Material - Collars | Black Oxide 1215 Lead Free Steel |
| Moment of Inertia | 4.282 x 10 |
| Note 1 | Performance ratings are for guidance only. The user must determine suitability for a particular application. |
| Number of Pieces | 1 |
| Number of Screws | 2 ea |
| Operating Temp. Range | -40 Degrees to 350 Degrees F |
| Outer Diameter (OD), Outside Dia. | 24 mm |
| Package | Bag |
| Product Status | Active |
| Recommended Shaft Tolerance | +0.000 mm / -0.013 mm |
| Screw Finish | Black Oxide |
| Screw Location (R) | 8.51 mm |
| Screw Material | Alloy Steel |
| Seating Torque | 2.1 Nm |
| Series | - |
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| Specifications | 0.945" (24.00mm) Outer Diameter x 0.787" (20.00mm) Width |
| Tariff Code | 8483.60.8000 |
| Temperature | -40?F to 350?F (-40?C to 176?C) |
| UNSPC | 31162811 |
| UPC | 634529107034 |
| UPC Code | 63452910703 |
| Weight (lbs) | 0.111500 |
| Width | 20 mm |
| Width (W) | 19.6 mm |
| Width Tolerance | +0.076 mm / -0.254 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G7920482 | 23.0 | 23.0 | 1 | In Stock | 10 | Ruland | 0.12 | 23.0 @ Qty: 1+ |
 | Ruland | MWCL-10-F | 29.39 | 29.39 | 1 | In Stock | Ruland | 0.1115 | 29.39 @ Qty: 1+ | |
| RS Delivers | 700-6910 | 29.484 | 29.484 | 1 | 7 | Ruland | 29.484 @ Qty: 1+ | |||
 | sustainablesupply.com | C1646322 | 36.99 | 36.99 | 1 | In Stock | Ruland Manufacturing | 0.12 | 36.99 @ Qty: 1+ | |
 | Digi-Key | 13594013 | 52.04 | 52.04 | 1 | 100 | Ruland Manufacturing | 52.04 @ Qty: 1+ | ||
| us.rs-online.com | 72177400 | 57.52 | 57.52 | 1 | 2 | Ruland Manufacturing | 57.52 @ Qty: 1+ | |||
 | Raptor Supplies | AF9WDD | 62.9179785 | 62.9179785 | 1 | In Stock | RULAND MANUFACTURING | 62.9179785 @ Qty: 1+ |
