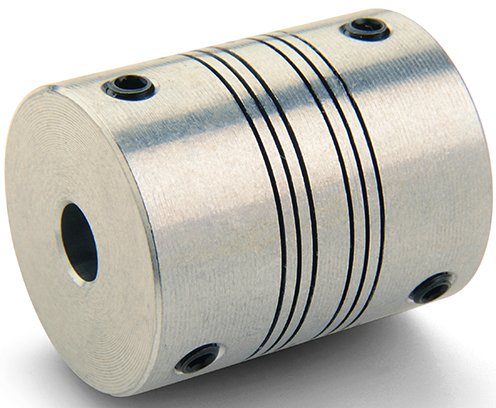

Ruland Manufacturing Co Inc PSMR19-6-3-A - PSMR19-6-3-A Beam Coupling, Set Screw Type 6mm Bore X 3mm Bore

Ruland Manufacturing Co Inc PSMR19-6-3-A - PSMR19-6-3-A Beam Coupling, Set Screw Type 6mm Bore X 3mm Borezoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.13 mm
B1 Max Shaft Penetration10.7 mm
B2 Max Shaft Penetration10.7 mm
Bore (B1)6 mm
bore - side 1:6 mm
bore - side 2:3 mm
Bore Dia.6mm x 3mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
Catalog PageN/A
CategoryHardware, Fasteners, Ac.
Clearance Dia. (mm)19.1
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.0.79 Nm
Dynamic Torque Reversing0.40 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM4
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Item?2AEF3
Length (L)22.9 mm
Length through Bore11.45 mm
Length through Bore (In.0.450
Length through Bore (mm)11.45
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
material:7075 Aluminum
Max. Angular Misalignme.3 Degrees, 3 ?
Max. Axial Misalignment.+/-0.005
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.225 ?F, 225 Degrees F
Max. Temp. Range (F)225
maximum angular misalig.3
maximum parallel misali.0.20 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Mfr. Model?PSMR19-6-3-A
Moment of Inertia0.731 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Four Beam
Number of Screws2 ea
operating temperature:-40 to +225
Outer Diameter (OD)19.1 mm
Outside Dia.19.1 mm
Outside Dia. (In.)0.75
Outside Dia. (mm)19.10
outside diameter:19.1 mm
Overall Length22.9 mm
Overall Length (In.)0.90
Overall Length (mm)22.90
overall length:22.9 mm
PackageBag
Parallel Misalignment0.20 mm
Product StatusActive
Rated Torque14 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM4
Screw Size (mm)M4
screw thread size:M4
Screw TypeSet Screw
Seating Torque1.76 Nm
Series-
Shaft Locking Type - Co.1 Piece Set Screw
Size-
Small Bore (B2)3 mm
Specifications0.750" (19.05mm) Outer .
Static Torque1.58 Nm
Style4 Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)14
Torsional Stiffness2.90 Deg/Nm
Torsional Stiffness (De.0.33
torsional stiffness:2.90 N-m/deg
TypeBeam Coupling
UNSPC31163003
UNSPSC31162811
UPC634529033012
Weight (lbs)0.032700
weight:0.059 lb
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG115048433.01In StockRuland0.0433.0 @ 1
thumbzoommotionindustries.com0233788938.511In StockRuland Manufacturing Co Inc38.51 @ 1
thumbzoomRulandPSMR19-6-3-A40.71In StockRuland0.032740.7 @ 1
Grainger2AEF347.381In StockRULAND MANUFACTURING47.38 @ 1
Digi-Key1359755567.53110Ruland Manufacturing67.53 @ 1
thumbzoomRaptor SuppliesAB8YBC69.37626151In StockRULAND MANUFACTURING69.3762615 @ 1
