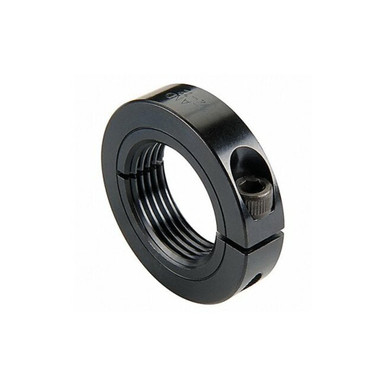

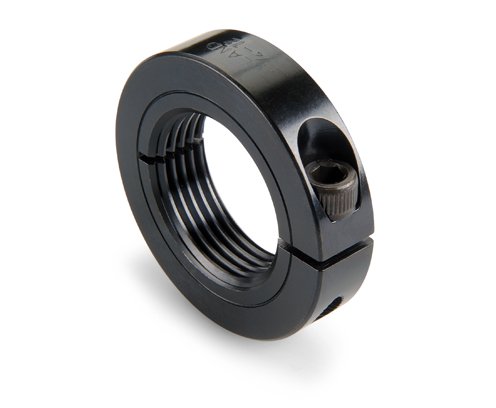

Ruland Manufacturing Co Inc TCL-16-12-F Shaft Collar - TCL Series, One Piece - Clamp, Steel - 1215 Lead-Free, Threaded Bore, 1.0000-12 TPI in ID, 1.7500 in OD.5000 in Wide

Ruland Manufacturing Co Inc TCL-16-12-F Shaft Collar - TCL Series, One Piece - Clamp, Steel - 1215 Lead-Free, Threaded Bore, 1.0000-12 TPI in ID, 1.7500 in OD.5000 in Widezoom

Attributes

Key Value
Bore Dia.1"-12
Bore Type - CollarsThreaded Bore
BrandRULAND
CategoryHardware, Fasteners, Ac.
Clearance Dia.2.032 in
Clearance Diameter (C) .2.032 in
Collar StyleClamp, Threaded
ColorBlack Oxide
Country of OriginUSA
Country of Origin (subj.United States
Current Stock22
Description3/4" STEEL THREADED COL.
Digi-Key Part Number3188-TCL-16-12-F-ND
Dimension TypeInch
Finish SpecificationHot Process Black Oxide.
Forged Clamp Screw1/4-28
Hex Wrench Size3/16 in
International ShippingNo
ItemShaft Collar
Item - Shaft CollarsShaft Collar
Lead TimeExpected to ship in 1-2.
ManufacturerRuland Manufacturing
Manufacturer Product Nu.TCL-16-12-F
MaterialBlack Oxide 1215 Lead F.
Material - CollarsBlack Oxide 1215 Lead F.
Material Specification1215 Carbon Steel Bar
MfrRuland Manufacturing
MpnTCL-16-12-F
Note 1Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)1 3/4 in
Outside Dia.1 3/4 in
PackageBag
Product StatusActive
Prop 65Warning: This product c.
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw Location (R)0.678 in
Screw MaterialAlloy Steel
Screw Size1/4"-28
Seating Torque170 lb-in
Series-
Shaft Locking Type - Co.1 Piece Clamp
SKUZO-G1634053
StandardsREACH Compliant, RoHS2 .
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Thread Class3B
Threaded Bore (B)1 in - 12 TPI
TypeShaft Collar
UNSPC31162811
UPC634529027943
UPC Code63452902794
Weight (lbs)0.228100
Width1/2 in
Width (W)0.500 in
Width Tolerance+0.003 in / -0.010 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7233867311.441In StockRuland Manufacturing11.44 @ 1
thumbzoomRulandTCL-16-12-F13.351In StockRuland0.228113.35 @ 1
thumbzoomsustainablesupply.comC167148714.851In StockRuland Manufacturing0.2214.85 @ 1
thumbzoomZoroG163405317.391In StockRuland0.2217.39 @ 1
motionindustries.com0024385818.641In StockRuland Manufacturing Co Inc18.64 @ 1
thumbzoomsimsupply.comZO-G163405322.84122RULAND22.84 @ 1
thumbzoomRaptor SuppliesAB8YZU30.1237561In StockRULAND MANUFACTURING30.123756 @ 1
thumbzoomDigi-Key1360818130.921167Ruland Manufacturing30.92 @ 1
