mpn:
brand:
manufacturer:
MPN:
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
909.78
Price:
909.78
Min Simple Price:
514.0
Absolute Min Price:
729.88
Min Price:
729.88
Dimensions:
[12.0, 12.0, 10.0]
qty:
21
simpleSku:
Y2NjM3:::76-NYB-0830-S
sku:
Y2NjM3::3M:76-NYB-0830-S@y0
condition:
11
seller:
Zoro
amzMan:
rwm
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included, Includes Thread Guards, Thread Guards | No |
| Caster Brake Type | No Brake Included |
| Caster Core Material, Caster Wheel/Tread Material, Wheel Core Material, Wheel/Tread Material | Nylon |
| Caster Frame Material, Frame Material | Steel |
| Caster Load Rating Range | Extra Super Duty |
| Caster Max. Temp. | 300 Degrees F |
| Caster Min. Temp. | -40 Degrees F |
| Caster Plate Hole Pattern, Mounting Plate Bolt Hole Pattern, Plate Caster Bolt Hole Pattern | A |
| Caster Plate Size, Plate Size | 5-1/4" x 7-1/4" |
| Caster Plate Thickness, Plate Thickness | 3/8" |
| Caster Product Group | Swivel Caster |
| Caster Raceway, Swivel Raceway Type | Single Ball |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type, Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -40 Degrees to 300 Degrees F |
| Caster Temp. Range Available, Extended Lead, Non-Marking | Yes |
| Caster Wheel Bearings | Ball |
| Caster Wheel Shape, Tread Shape | Standard |
| Core Color, Wheel Color, Wheel/Tread Color | Black |
| Country of Origin (subject to change) | United States |
| Durometer | 80 Shore D |
| Frame Finish | Powder Coated |
| Includes | Complete Caster |
| Inside Bolt Hole Spacing | 3-3/8 in x 5-1/4 in |

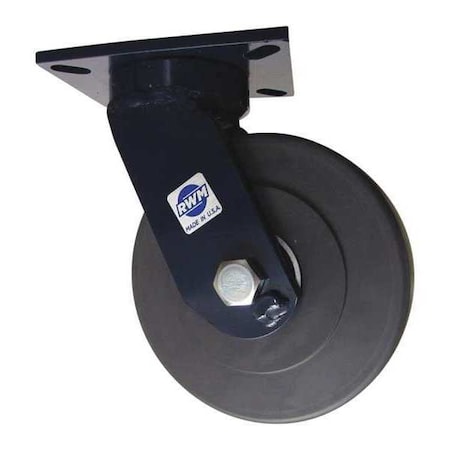

| Item | Kingpinless Plate Caster |
| Load Rating | 7000 lb |
| Load Rating Range | 6000 lb and Greater |
| Mounting Bolt Dia. | 1/2 in |
| Mounting Height | 10 1/2 in |
| Mounting Plate Size | 5 1/4 in x 7 1/4 in |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Outside Bolt Hole Spacing | 4-1/8 in x 6-1/8 in |
| Overall Height | 10-1/2" |
| Replacement Wheel | Mfr. No. NYB-0830-12 |
| Standards | ICWM, ISO 9001 |
| Swivel Construction | Kingpinless |
| Swivel Radius | 2 in |
| Wheel Bearing Type | Precision Ball |
| Wheel Dia. | 8 in |
| Wheel Width | 3 in |
| Wheel/Tread Hardness | 85 Shore D |
| Wheel/Tread Hardness Rating | Hard |
