- mpnSCB-5000
- brandname: SAMSUNG
- manufacturername: SAMSUNG

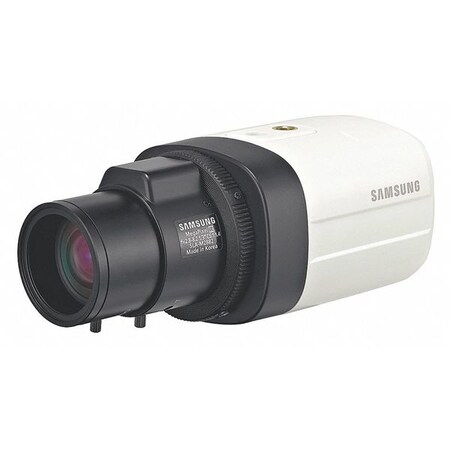

SAMSUNG/HANWHA TECHWIN SCB-5000
- Brand: SAMSUNG
- PartNumber: SCB-5000
- Model: SCB-5000
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Samsung
- Label: Samsung
Attributes
| Key | Value |
|---|
| Auto Gain Control | Yes, Off / Low / Middle. |
| Automatic White Balance | ATW / Outdoor / Indoor . |
| Back Light Compensation | Yes |
| Backlight Compensation | Off / User BLC / HLC |
| Camera Signal | Analog |
| Coaxitron</th> . | Yes |
| Connection Type | Wired |
| Country of Origin (subj. | China |
| Day/Night | Yes |
| Day/Night Capable | Day/Night |
| Digital Noise Reduction | Yes, SSNR IV (Off / On) |
| Digital Video Camera Im. | 1/3 CMOS |
| Digital Zoom</th> . | Yes |
| Dimensions (W x H) | 68.4 x 59.6 x 92.7mm (2. |
| Durability | Indoor |
| Electronic Shutter | 1sec ~ 1/12,000sec |
| Exposure Conditions | 14 Degrees to 131 Degr. |
| Features | Auto Gain Control, Auto. |
| For Use With | Video Surveillance |
| Height (In.) | 2-23/64 |
| Illumination | No |
| Image Device | 1/3" 1.3M CMOS |
| Image Pixels Total</th>. | 1,312(H) x 1,069(V) |
| Image Pixels-Effective<. | 1,305(H) x 1,049(V) |
| Infrared Distance | Non Infrared |
| Item | Box Camera |
| Length (In.) | 3-21/32 |
| Lens | DC Auto Iris |
| Lens Type | Not included |
| Luminance Factor | 0.03 lux |
| Manufacturer | Samsung |
| Min. Light Level (Lux) | 0.03 |
| Minimum Scene Illuminat. | 0.03Lux (F1.2, 50IRE), . |
| Motion Detection | Off / On |
| Motion Detection Tracki. | Yes |
| Mount | Ceiling, Surface |
| Mount Type | Bracket Required |
| On Screen Display Menu | Yes |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10?C ~ +55?C (+14?F ~ . |
| OSD Menu | English, Chinese, Korea. |
| Pixels | 1312(H) x 1069(V) |
| Power Consumption | Max. 3.7W, 3.7W |
| Power Supply | Not included |
| Privacy Masking | Yes |
| Privacy Zone | Off / On (24 programmab. |
| Promotion Restriction | Not eligible for promot. |
| Protocols | Coax : Pelco-C (Coaxitr. |
| Resolution | 1000 TVL |
| S/N Ratio | 52dB (AGC off, Weight o. |
| S/N Ratio (dB) | 50 |
| Scanning | Progressive |
| Scanning Horizontal | 15.734KHz |
| Scanning System | Progressive scan |
| Scanning Vertical</th> . | 59.94Hz |
| Sensor Option | 1/3" CMOS |
| SKU | SCB-5000 |
| Synchronization | Internal |
| Type | Analog |
| Video Output | CVBS : 1.0 Vpp / 75? co. |
| Voltage | 12vDC, 24vAC, Dual Volt. |
| Width (In.) | 2-11/16 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9474236 | 113.0 | 1 | In Stock | 10 | Samsung | | 113.0 @ 1 |
 | surveillance-video.com | SCB-5000 | 117.78 | 1 | In Stock | | Samsung | | 117.78 @ 1 |
