Samtec BSW-106-04-S-S

B011NOGPJG

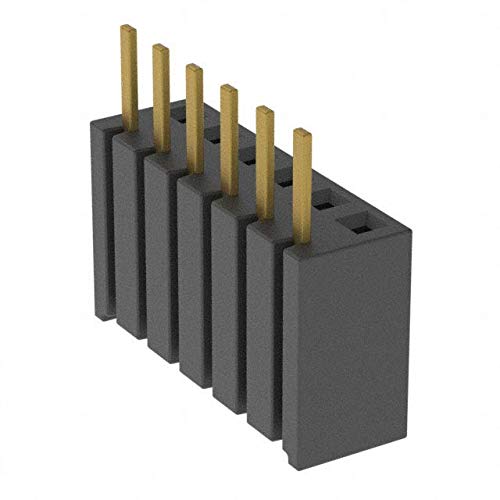

SAMTEC BSW-106-04-S-S Bottom MT 1X6 Female Tin Connector New Lot Quantity-25

SAMTEC BSW-106-04-S-S Bottom MT 1X6 Female Tin Connector New Lot Quantity-25zoom

Attributes

Key Value
Applications-
Base Product NumberBSW-106
CategoryConnectors, Interconnec.
Connector TypeReceptacle, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.-
Contact Length - Post0.170" (4.32mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)-
DescriptionCONN RCPT 6POS 0.1 GOLD.
Detailed Description6 Position Receptacle, .
Digi-Key Part Number612-BSW-106-04-S-S-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.350" (8.89mm)
Insulation MaterialPolyethylene Terephthal.
ManufacturerSamtec Inc.
Manufacturer Product Nu.BSW-106-04-S-S
Manufacturer Standard L.6 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSamtec Inc.
Mounting TypeThrough Hole, Bottom Mo.
Number of Positions6
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 125?C
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SeriesBSW
StyleBoard to Board
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark87P30991.531627SAMTEC1.53 @ 1
thumbzoomDigi-Key66817031.788155Samtec Inc.1.788 @ 1
