Samtec FTR-110-03-G-D-LC-06

B07PMFFPCH

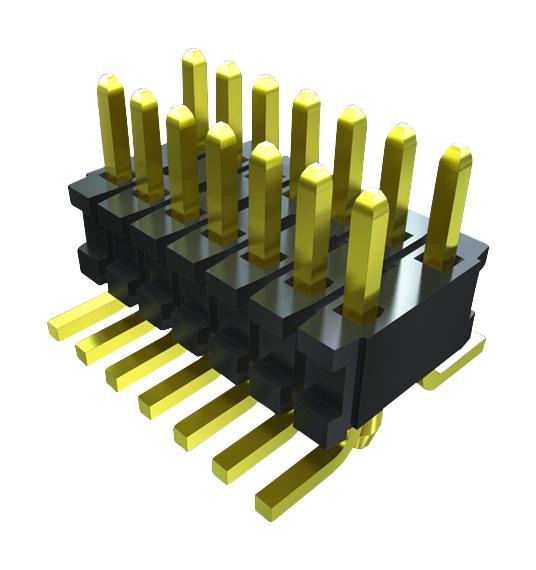

FTR-110-03-G-D-LC-06, Board-to-Board Connector - 1.27 mm - 20 Contacts - Header - Surface Mount - 2 Rows. (10 Items)

FTR-110-03-G-D-LC-06, Board-to-Board Connector - 1.27 mm - 20 Contacts - Header - Surface Mount - 2 Rows. (10 Items)zoom

Attributes

Key Value
Applications-
Base Product NumberFTR-110
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thicknes.10.0?in (0.25?m)
Contact Finish Thicknes.3.00?in (0.076?m)
Contact Length - Mating0.125" (3.18mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.1A per Contact
DescriptionCONN HEADER SMD 20POS 1.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberSAM8791-ND
Fastening TypePush-Pull
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.100" (2.54mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerSamtec Inc.
Manufacturer Product Nu.FTR-110-03-G-D-LC-06
Manufacturer Standard L.6 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSamtec Inc.
Mounting TypeSurface Mount
Number of Positions20
Number of Positions Loa.19
Number of Rows2
Operating Temperature-55?C ~ 125?C
Overall Contact Length-
PackageTube
Pitch - Mating0.050" (1.27mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesFTR
ShroudingUnshrouded
StyleBoard to Board
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH14682194.268110Samtec, Inc.4.268 @ 10
SamtecFTR-110-03-G-D-LC-064.4412200Samtec4.44 @ 10
thumbzoomDigi-Key26511747.99561830Samtec Inc.7.9956 @ 10
thumbzoomRadwellFTR-110-03-G-D-LC-068.0110SAMTEC8.0 @ 10
thumbzoomNewark06W49798.1912136SAMTEC8.19 @ 10
