mpn:
brand:
manufacturer:
MPN:
Preferred Price:
61.59
Price:
61.59
Min Simple Price:
1.3464
Absolute Min Price:
47.79
Min Price:
47.79
Dimensions:
[1.0, 1.0, 1.0]
qty:
4
simpleSku:
Tg0MDc:::TSW-110-15-F-D
sku:
Tg0MDc::4W:TSW-110-15-F-D@x25
condition:
11
seller:
RS Delivers
amzMan:
samtec
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications, Contact Finish Thickness - Post, Current Rating (Amps), Features, Ingress Protection, Mated Stacking Heights, Voltage Rating | - |
| Base Product Number | TSW-110 |
| Category | Connectors, Interconnects |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3.00?in (0.076?m) |
| Contact Length - Mating | 0.520" (13.21mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |

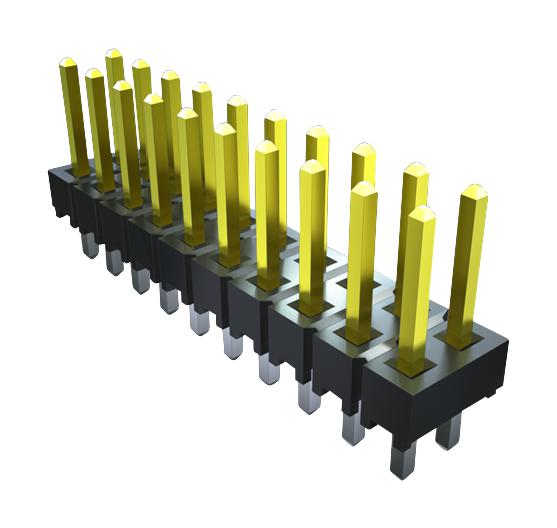

| Description | CONN HEADER VERT 20POS 2.54MM |
| Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Digi-Key Part Number | SAM10354-ND |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height, Pitch - Mating, Row Spacing - Mating | 0.100" (2.54mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Manufacturer Product Number | TSW-110-15-F-D |
| Manufacturer Standard Lead Time | 6 Weeks |
| Manufacturer, Mfr | Samtec Inc. |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 125?C |
| Overall Contact Length | 0.730" (18.54mm) |
| Package | Bulk |
| Product Status | Active |
| Series | TSW |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| RS Delivers | 180-3188 | 1.3464 | 20.73456 | 1 | 25 | Samtec | 1.3464 @ Qty: 25+ | |||
| Samtec | TSW-110-15-F-D | 1.85 | 28.49 | 1 | 25 | Samtec | 1.85 @ Qty: 25+ | |||
 | Newark | 56AC7236 | 1.9 | 29.26 | 1 | 247 | SAMTEC | 1.9 @ Qty: 25+ | ||
 | Digi-Key | 6679091 | 2.279 | 35.0966 | 1 | 117 | Samtec Inc. | 2.279 @ Qty: 25+ |
