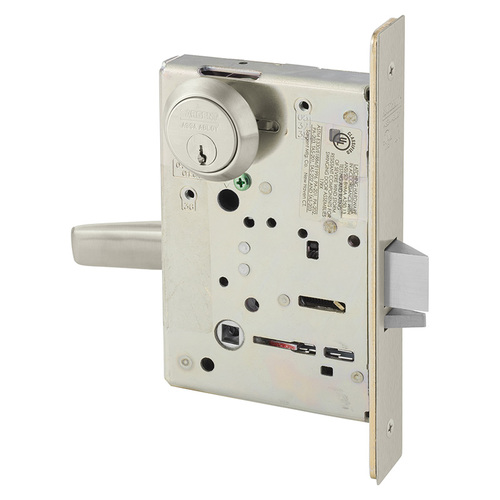

Sargent 8206 OB 15
Sargentzoom
brand:
manufacturer:
Description:
<p><b>Storeroom or Service Mortise Lock, O Rose, B Lever, Satin Nickel,</b></p><p>When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability</p><p>The 8200 Series is the strongest lock on the block.</p><p><p> The 8200 series far surpasses Grade 1 standards, making it the strongest and most durable mortise lock in the industry. </p><p><p>Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. </p>

Attributes

Key ^Value
ApplicationComplete Lock
BAA QualifiedYes
Base MaterialBrass or Bronze
Bolt Protection3/4" Latch
ColorSatin Nickel Plated Clear Coated
Color Code619/US15
Cylinder TypeConventional Cylinder
Fire Rated2 Hours {B}
Function06-Storeroom or Service
GradeGrade 1
HandField Reversible
Key(s)Cut
KeyingKeyed Different
KeywayLA
Lever/Knob DesignB - Lever
Lock Face Size8" x 1-1/4"
OriginUSA
Package Height4.375"
Package Length9.25"
Package Qty1
Package Volume227.6367188
Package Width5.625"
Rose/Escutcheon DesignO - Rose
ScrewsCombination
Special MarksConventional cylinder, Fire rated 2 Hours {B}
Strike Height4-7/8"
Strike Number82-0110
Strike TypeASA
Strike Width1-1/4"
Thickness1-3/4"
