Sargent 8227 LE1P 10
Sargentzoom
brand:
manufacturer:
Description:

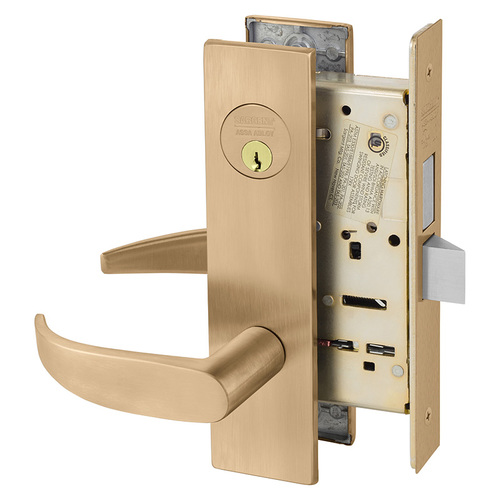

<p><b>Closet or Storeroom Mortise Lock, LE1 Escutcheon, P Lever, Satin Bronze</b></p><p>When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability</p><p>The 8200 Series is the strongest lock on the block.</p><p><p> The 8200 series far surpasses Grade 1 standards, making it the strongest and most durable mortise lock in the industry. </p><p><p>Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. </p>

Attributes

Key ^Value
ApplicationComplete Lock
BAA QualifiedYes
Base MaterialBronze
Bolt Protection3/4" Latch, 1" Deadbolt
ColorSatin Bronze Clear Coated
Color Code612/US10
Cylinder TypeConventional Cylinder
Fire Rated2 Hours {B}
Function27-Closet or Storeroom
GradeGrade 1
HandField Reversible
Key(s)Cut
KeyingKeyed Different
KeywayLA
Lever/Knob DesignP - Lever
Lock Face Size8" x 1-1/4"
OriginUSA
Package Height4.375"
Package Length9.25"
Package Qty1
Package Volume227.6367188
Package Width5.625"
Rose/Escutcheon DesignLE1 - Escutcheon
ScrewsCombination
Special MarksConventional cylinder, Fire rated 2 Hours {B}
Strike Height4-7/8"
Strike Number82-0110
Strike TypeASA
Strike Width1-1/4"
Thickness1-3/4"
