Sargent RX28-10G71-12V GP 4
Sargentzoom
brand:
manufacturer:
Description:

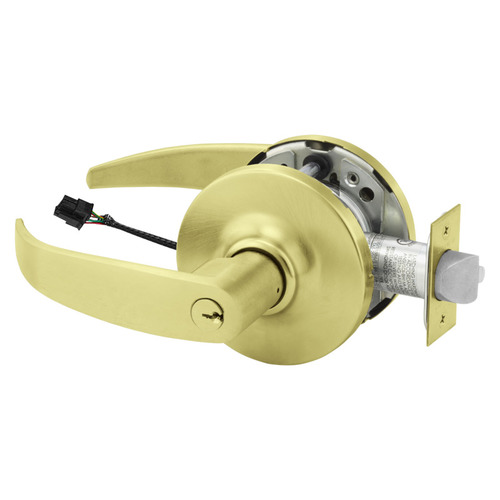

<p><b>Electrified Cylindrical Lock, Fail Secure, 12V, GP Design, RX Switch, Satin Brass</b></p><p>The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.</p><p>The 10 Line is the standard for institutional applications.</p><p><p>A heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.</p>

Attributes

Key ^Value
Amp Draw500mA
BAA QualifiedYes
Base MaterialBrass
Bolt Protection1/2"
Case Height9"
Case Length20.75"
Case Volume2801.25
Case Width15"
ColorSatin Brass
Color Code606/US4
Cylinder TypeConventional Cylinder
Door Thickness1-3/4" to 2"
Fire Rated3 Hours {A}
Function71-Electromechanical Fail Secure
GradeGrade 1
HandNon Handed
Key(s)Included
KeyingKeyed Different
KeywayLA
Latch Backset Dim2-3/4"
Latch Number10-3192
Latch TypeDead Latch (Guarded)
Lever/Knob DesignP - Lever
Lock Face Size2-1/4" x 1-1/8"
Operating Voltage12VDC
OriginUSA
Package Height4.25"
Package Length8.25"
Package Qty1
Package Volume249.8203125
Package Width7.125"
PowerHard Wired
Rose/Escutcheon DesignG - Rose
ScrewsCombination
Special MarksConventional cylinder, Fire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number808
Strike TypeASA
Strike Width1-1/4"
Switch TypeRX
