Schaffner FN3026HL-30-71

B005T5DC88

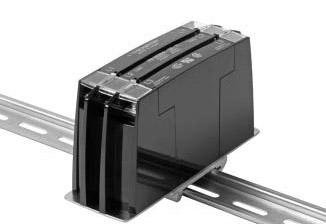

Schaffner Rfi Power Line Filter, 30A, 400Ua - FN3026HL-30-71

Schaffner Rfi Power Line Filter, 30A, 400Ua - FN3026HL-30-71zoom

Attributes

Key Value
Alternate Mfr Part Numb.802567
ApplicationsGeneral Purpose
Approval AgencyCSA, ENEC, UR
Base Product NumberFN3026HL
CategoryFilters
ConfigurationSingle Stage
Current30 A
Current Rating30 A
DescriptionLINE FILTER 30A DIN RAIL
Detailed DescriptionThree Phase (Delta) EMC.
Digi-Key Part Number817-1123-ND
Dimensions78 H x 50 W x 150 L mm
Filter TypeThree Phase (Delta), EM.
Frequency - Operating60Hz
GenderMale
Inductance-
IP RatingIP00
Line to Ground Hipot Ra.2000
Line to Line Hipot Rati.2250 VDC
ManufacturerSchaffner EMC Inc.
Manufacturer Product Nu.FN3026HL-30-71
Manufacturer Standard L.20 Weeks
MfrSchaffner EMC Inc.
Mounting TypeDIN Rail Mount, DIN Rail
Operating Temperature-25?C ~ 100?C
Operating Voltage520 to 300 V
PackageTray
Phase3 Phase
Primary TypeAC
Product Header3-Phase Advanced EMC/RF.
Product StatusActive
Schaffner Part Number802-280
SeriesFN 3025/3026 Series, FN.
Termination StyleTerminal Block
TypeAC
VersionStandard
Voltage - Rated AC-
Voltage - Rated AC (Pha.300 V
Voltage - Rated AC (Pha.520 V
Voltage - Rated DC-
Voltage Rating520 V
Wire Size7-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comFN3026HL-30-7197.91118SCHAFFNER EMC97.91 @ 1
AmazonSCB005T5DC88140.631In StockSchaffner140.63 @ 1
thumbzoomNewark33M8456149.5610In StockSCHAFFNER149.56 @ 10
thumbzoomDigi-Key1928703152.8311Schaffner EMC Inc.152.83 @ 1
RS Delivers882-6295156.4681In StockSchaffner156.468 @ 1
us.rs-online.com70027295163.05120Schaffner163.05 @ 1
